Rockchip MCU + RK628 Porting Guide
ID: RK-YH-YF-287
Release Version: V1.1.0
Date: 2021-05-28
Security Level: □Top-Secret □Secret □Internal ■Public
DISCLAIMER
THIS DOCUMENT IS PROVIDED "AS IS". ROCKCHIP ELECTRONICS CO., LTD. ("ROCKCHIP") DOES NOT PROVIDE ANY WARRANTY OF ANY KIND, EXPRESSED, IMPLIED OR OTHERWISE, WITH RESPECT TO THE ACCURACY, RELIABILITY, COMPLETENESS, MERCHANTABILITY, FITNESS FOR ANY PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY REPRESENTATION, INFORMATION AND CONTENT IN THIS DOCUMENT. THIS DOCUMENT IS FOR REFERENCE ONLY. THIS DOCUMENT MAY BE UPDATED OR CHANGED WITHOUT ANY NOTICE AT ANY TIME DUE TO THE UPGRADES OF THE PRODUCT OR ANY OTHER REASONS.
Trademark Statement
"Rockchip", "Rockchip", "Rockchip" shall be Rockchip's registered trademarks and owned by Rockchip. All the other trademarks or registered trademarks mentioned in this document shall be owned by their respective owners.
All rights reserved. ©2021. Rockchip Electronics Co., Ltd.
Beyond the scope of fair use, neither any entity nor individual shall extract, copy, or distribute this document in any form in whole or in part without the written approval of Rockchip.
Rockchip Electronics Co., Ltd.
No. 18, Area A, Software Park, Tongpan Road, Fuzhou, Fujian Province
Website: www.rock-chips.com
Customer service Tel: +86-4007-700-590
Customer service Fax: +86-591-83951833
Customer service e-Mail: fae@rock-chips.com
Preface
This document mainly introduces the usage and debugging methods of the RK628.
Intended Audience
This document (guide) is mainly suitable for the following engineers:
Field Application Engineer
Software Development Engineer
Revision History
| Version | Author | Date | Revision Description |
|---|---|---|---|
| V1.0.0 | Huang Guochun | 2021-04-06 | Initial release |
| V1.1.0 | Chen Shunqing | 2021-05-28 | Added HDMI input |
Table of Contents
[TOC]
Introduction

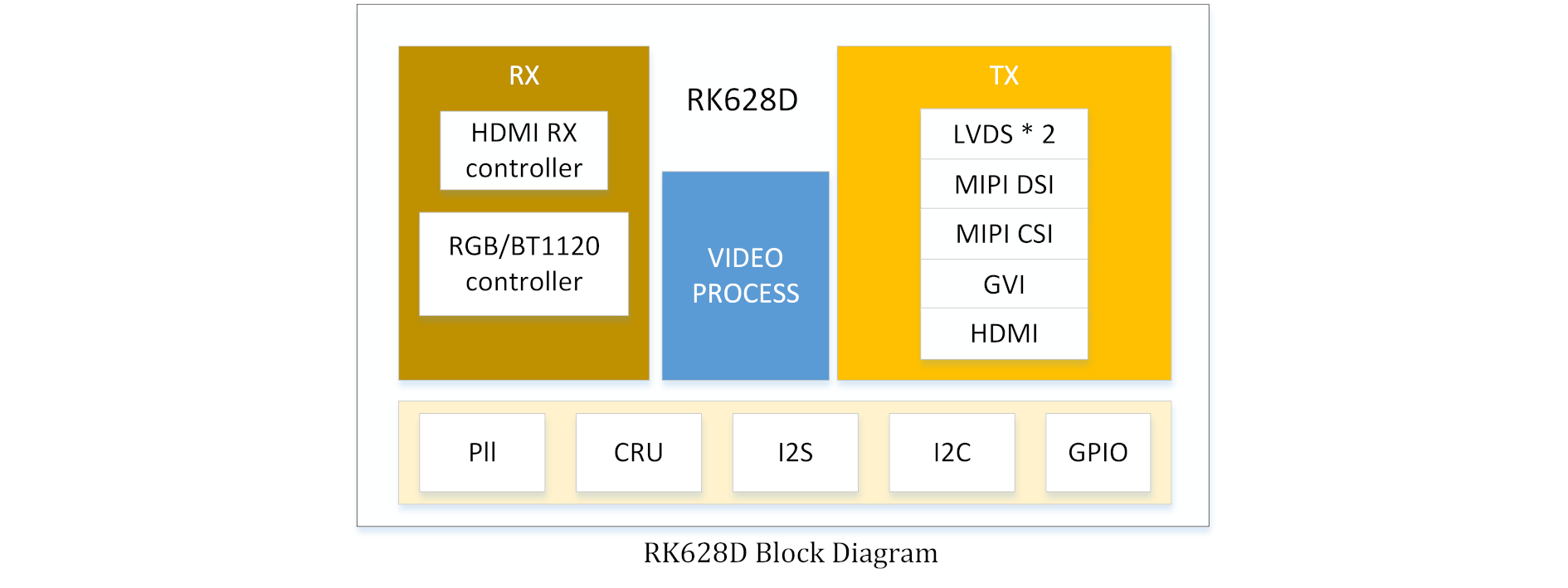

This document mainly describes the software configuration, porting methods, and debugging approaches for MCU + RK628. For specific functional descriptions, refer to the datasheet.
Driver:
├── Include
│ ├── panel.h
│ ├── rk628_combtxphy.h
│ ├── rk628_config.h
│ ├── rk628_cru.h
│ ├── rk628_dsi.h
│ ├── rk628.h
│ ├── rk628_lvds.h
│ ├── rk628_post_process.h
│ ├── rk628_registers_dump.h
│ └── rk628_rgb.h
└── Source
├── panel.c
├── rk628.c
├── rk628_combtxphy.c
├── rk628_config.c
├── rk628_cru.c
├── rk628_dsi.c
├── rk628_lvds.c
├── rk628_post_process.c
├── rk628_registers_dump.c
└── rk628_rgb.c
Platform Porting
The following describes the MCU environment based on GD. All items requiring porting or configuration should be modified in rk628_config.c or rk628_config.h as much as possible.
Porting Platform Basic Header Files
Reference the third-party MCU platform header files in rk628_config.h:
...
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "gd32f1x0_eval.h" // Platform-related basic header file
#include "gd32f1x0.h" // Platform-related basic header file
#include "systick.h" // Header file for delay-related implementation dependencies
...
Encapsulating I2C Read/Write Access Interfaces

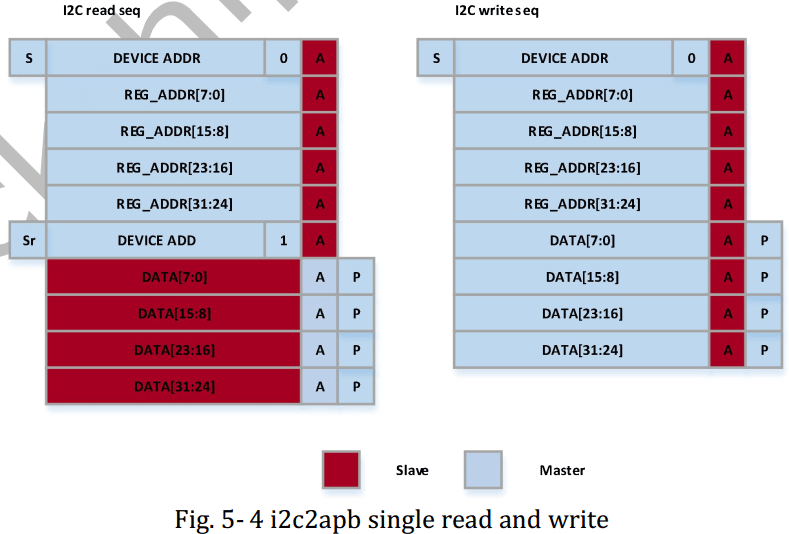

The RK628D address and data are both 32-bit. Encapsulate the access interfaces based on the RK628D I2C operation flow shown below:
Note: For more RK628D i2c read/write flows, refer to the corresponding TRM manual.
...
void rk628_i2c_write(uint32_t reg, uint32_t val)
{
i2c_write(reg, val); // I2C write interface to be implemented on MCU
}
uint32_t rk628_i2c_read(uint32_t reg)
{
return i2c_read(reg); // I2C read interface to be implemented on MCU
}
void rk628_i2c_update_bits(uint32_t reg, uint32_t mask, uint32_t val)
{
uint32_t orig, tmp;
orig = i2c_read(reg);
tmp = orig & ~mask;
tmp |= val & mask;
i2c_write(reg, tmp);
}
...
To test I2C read/write functionality, use the interface in rk628_registers_dump.c to dump the current configuration of each RK628D register field.
Encapsulating Delay-Related Interfaces
...
void mdelay(unsigned long msec)
{
delay_1ms(1); // MCU platform implementation
}
/* More precision delay interfaces can be implemented based on the MCU platform */
...
Main Function
int main(void)
{
...
while (1)
{
if (!init) {
//set reset
gpio_bit_reset(GPIOA, GPIO_PIN_9);
delay_1ms(6);
gpio_bit_set(GPIOA, GPIO_PIN_9);
delay_1ms(1000);
fwdgt_counter_reload();
init = 1;
}
rk628_init();
delay_1ms(1000);
}
}
-
The reset pin only needs to be pulled once, so after initialization, there is no need to pull the reset pin again.
-
rk628_init() needs to be called in a loop because if HDMI IN is used, the HDMI status and resolution changes need to be detected.
Input/Output Configuration
#define RK628_HDMI_IN
#undef RK628_RGB_IN
#undef RK628_RGB_OUT
#define RK628_LVDS_OUT
#undef RK628_DSI_OUT
Currently, inputs include HDMI IN and RGB IN, and outputs include RGB, LVDS, DSI, CSI. Therefore, the corresponding input and output need to be configured. The above configuration is HDMI IN + LVDS OUT.
void rk628_init(void)
{
static int init = 0;
if (!init) {
rk628_grf_init();
rk628_cru_init();
rk628_display_enable();
#ifdef RK628_REG_DUMP
rk628_registers_dump();
#endif
init = 1;
}
rk628_display_work();
}
As shown above, for RGB IN, only one initialization call is needed because the RGB input source is fixed. rk628_display_enable() sets up the display path, and rk628_display_work() is an empty function for inputs other than HDMI IN.
For HDMI IN, it needs to be called in a loop to detect status and resolution changes. Therefore, rk628_display_work() polls for changes in HDMI IN status.
Panel Configuration
Timing Configuration
Modify configuration in rk628_config.c
static struct drm_display_mode src_mode = {
/* .clock = */ 27000,
/* .hdisplay = */ 480,
/* .hsync_start = */ 479 + 30,
/* .hsync_end = */ 480 + 30 + 6,
/* .htotal = */ 480 + 30 + 6 + 20,
/* .vdisplay = */ 800,
/* .vsync_start = */ 800 + 18,
/* .vsync_end = */ 800 + 18 + 6,
/* .vtotal = */ 800 + 18 + 6 + 12,
/* .flags = */ DRM_MODE_FLAG_PHSYNC | DRM_MODE_FLAG_PVSYNC,
};
static struct drm_display_mode dst_mode = {
/* .clock = */ 27000,
/* .hdisplay = */ 480,
/* .hsync_start = */ 480 + 30,
/* .hsync_end = */ 480 + 30 + 6,
/* .htotal = */ 480 + 30 + 6 + 20,
/* .vdisplay = */ 800,
/* .vsync_start = */ 800 + 18,
/* .vsync_end = */ 800 + 18 + 6,
/* .vtotal = */ 800 + 18 + 6 + 12,
/* .flags = */ DRM_MODE_FLAG_PHSYNC | DRM_MODE_FLAG_PVSYNC,
};
If a scaler is used, configure the scaler source timing to src_mode and the scaler output timing to dst_mode. If no scaler is used, configure src_mode and dst_mode with the same target timing.
If dual DSI or dual LVDS is used, multiply clock, hdisplay, hsync_start, hsync_end, and htotal in src_mode and dst_mode by 2 based on the original single-screen configuration.
Panel Timing Implementation
Implement in panel.c
/* operation panel rst/enable/power-supply or send cmd for dsi panel */
void panel_pre_enable(void)
/* operation panel backlight */
void panel_enable(void)
/* reverse operation panel_pre_enable/panel_enable */
void panel_disable(void)
DSI Panel Initialization Sequence Configuration
Configure according to the initialization sequence provided by the panel vendor:
static const uint8_t panel_init_sequence[][7] = {
{ 0x23, 0x00, 0x02, 0xd1, 0x2e },
{ 0x23, 0x00, 0x02, 0xd2, 0x32 },
{ 0x23, 0x00, 0x02, 0xd3, 0x00 },
{ 0x29, 0x00, 0x04, 0xff, 0x98, 0x81, 0x00 },
};
struct panel_cmd_seq panel_cmd_init_seq = {
/* .cmd_cnt */ 4,
};
panel_init_sequence is a defined two-dimensional array. The first column indicates data type, the second column indicates mdelays, the third column indicates the payload_length for each command, and the subsequent columns are the payload for each command.
Common Data Types
| data type | description | packet size |
|---|---|---|
| 0x03 | Generic Short WRITE, no parameters | short |
| 0x13 | Generic Short WRITE, 1 parameter | short |
| 0x23 | Generic Short WRITE, 2 parameters | short |
| 0x29 | Generic long WRITE | long |
| 0x05 | DCS Short WRITE, no parameters | short |
| 0x15 | DCS Short WRITE, 1 parameter | short |
Application Scenarios
RGB Input
DSI Output
- Configure the RGB2DSI display path in rk628.c:
void rk628_init(void)
{
rk628_grf_init();
rk628_cru_init();
rk628_rgb_rx_enable(); // Enable rk628D RGB_RX
rk628_post_process_init();
rk628_post_process_enable();
rk628_dsi_enable(); // Enable RK628D DSI_TX
rk628_registers_dump();
}
Note: rk628_grf/cru/post_process interfaces generally do not need modification.
- Configure the DSI panel initialization sequence in panel.c (refer to DSI panel initialization sequence configuration), and send it during the panel power-on phase:
void panel_pre_enable(void)
{
/* operation panel rst/enable/power-supply */
/* option call panel_simple_xfer_dsi_cmd_seq()
* only if encoder is dsi.
*/
panel_simple_xfer_dsi_cmd_seq();
}
- Configure the following dsi host information in rk628_config.c to select single DSI or dual DSI:
Property Description
| Property | Description | Option Value |
|---|---|---|
| bpp | bits for a pixel | 16/18/24 |
| bus_format | color mapping | MIPI_DSI_FMT_RGB888/RGB666/RGB666_PACKED/RGB565 |
| lanes | select dsi host lanes | 1/2/4 |
| slave | dual channel dsi | TRUE/FALSE |
| master | dual channel dsi | TRUE/FALSE |
| flags | hsync/vsync polarity | 0/DRM_MODE_FLAG_NHSYNC |
Note: Apart from the properties described in the table that can be modified according to the option value, other properties are not recommended for modification.
Single DSI Output
/* config dsi0 */
static struct rk628_dsi rk628_dsi0 = {
/* .bpp = */ 24,
/* .bus_format */ MIPI_DSI_FMT_RGB888,
/* .slave = */ FALSE,
/* .master = */ FALSE,
/* .channel = */ 0,
/* .reg_base */ 0x50000,
/* .lanes */ 4,
/* .id */ 0,
/* .flags = */ DRM_MODE_FLAG_NHSYNC | DRM_MODE_FLAG_NVSYNC,
/* .mode_flags */ MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST | MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET,
};
/* config dsi1 for dual channel dsi */
static struct rk628_dsi rk628_dsi1 = {
/* .bpp = */ 24,
/* .bus_format */ MIPI_DSI_FMT_RGB888,
/* .slave = */ FALSE,
/* .master = */ FALSE,
/* .channel = */ 0,
/* .reg_base */ 0x60000,
/* .lanes */ 4,
/* .id */ 0,
/* .flags = */ DRM_MODE_FLAG_NHSYNC | DRM_MODE_FLAG_NVSYNC,
/* .mode_flags */ MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST | MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET,
};
Dual DSI Output
Modify rk628_dsi0 slave to TRUE, rk628_dsi1 master to TRUE:
/* config dsi0 */
static struct rk628_dsi rk628_dsi0 = {
/* .bpp = */ 24,
/* .bus_format */ MIPI_DSI_FMT_RGB888,
/* .slave = */ TRUE,
/* .master = */ FALSE,
/* .channel = */ 0,
/* .reg_base */ 0x50000,
/* .lanes */ 4,
/* .id */ 0,
/* .flags = */ DRM_MODE_FLAG_NHSYNC | DRM_MODE_FLAG_NVSYNC,
/* .mode_flags */ MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST | MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET,
};
/* config dsi1 for dual channel dsi */
static struct rk628_dsi rk628_dsi1 = {
/* .bpp = */ 24,
/* .bus_format */ MIPI_DSI_FMT_RGB888,
/* .slave = */ FALSE,
/* .master = */ TRUE,
/* .channel = */ 0,
/* .reg_base */ 0x60000,
/* .lanes */ 4,
/* .id */ 0,
/* .flags = */ DRM_MODE_FLAG_NHSYNC | DRM_MODE_FLAG_NVSYNC,
/* .mode_flags */ MIPI_DSI_MODE_VIDEO | MIPI_DSI_MODE_VIDEO_BURST | MIPI_DSI_MODE_LPM | MIPI_DSI_MODE_EOT_PACKET,
};
LVDS Output
- Configure the RGB2LVDS display path in rk628.c:
void rk628_init(void)
{
rk628_grf_init();
rk628_cru_init();
rk628_rgb_rx_enable(); // Enable rk628D RGB_RX
rk628_post_process_init();
rk628_post_process_enable();
rk628_lvds_enable(); // Enable RK628D LVDS_TX
rk628_registers_dump();
}
- Configure the LVDS output type in rk628_config.c:
Property Description
| property | description |
|---|---|
| LVDS_SINGLE_LINK | Single-channel LVDS |
| LVDS_DUAL_LINK_ODD_EVEN_PIXELS | Dual-channel LVDS, left/right channels are odd/even channels |
| LVDS_DUAL_LINK_EVEN_ODD_PIXELS | Dual-channel LVDS, left/right channels are even/odd channels |
| LVDS_DUAL_LINK_LEFT_RIGHT_PIXELS | Dual-channel LVDS, left/right channels are left/right screens |
| LVDS_DUAL_LINK_RIGHT_LEFT_PIXELS | Dual-channel LVDS, left/right channels are right/left screens |
Single LVDS Output
uint32_t rk628_lvds_get_link_type(void)
{
return LVDS_SINGLE_LINK;
}
Dual LVDS Output
uint32_t rk628_lvds_get_link_type(void)
{
return LVDS_DUAL_LINK_ODD_EVEN_PIXELS;
}
Note: You can select the dual-channel LVDS odd/even characteristics based on the screen specifications.
Dual LVDS Left/Right Screens
uint32_t rk628_lvds_get_link_type(void)
{
return LVDS_DUAL_LINK_LEFT_RIGHT_PIXELS;
}
Note: You can select dual-channel LVDS left/right output based on hardware design.
HDMI Input
Configuring HDMI Input
#define RK628_HDMI_IN
HDMI Detection Pin Configuration
#define HDMIRX_DET_PORT GPIOA
#define HDMIRX_DET_PIN GPIO_PIN_8
HPD Output Configuration
Due to hardware design issues, some hardware requires HPD to be active low. If active low is needed, define the following macro:
#define HDMIRX_HPD_INVERTED
Notes
-
HDMIRX has requirements for clock rate points. Currently, only the following rate points are supported:
27M, 64M, 74.25M, 148.5M, 297M, 594M -
Because the HDMI input resolution, color format, etc., may be switched, and the rate point parameter calculation is time-consuming, the resolution switching process may take a relatively long time, approximately a few seconds.
