RT-Thread DISPLAY Development Guide

ID: RK-KF-YF-105

Release Version: V1.3.1

Date: 2020.05.20

Security Level: □Top Secret □Secret □Internal ■Public

---

DISCLAIMER

This document is provided "as is". Fuzhou Rockchip Electronics Co., Ltd. ("the Company") makes no express or implied representations or warranties regarding the accuracy, reliability, completeness, merchantability, fitness for a particular purpose, or non-infringement of any statements, information, or content in this document. This document is for reference as a usage guide only.

Due to product version upgrades or other reasons, this document may be updated or modified from time to time without any notice.

Trademark Statement

"Rockchip", "Rockchip", and "Rockchip" are registered trademarks of the Company and belong to the Company.

All other registered trademarks or trademarks mentioned in this document are owned by their respective owners.

Copyright © 2019 Fuzhou Rockchip Electronics Co., Ltd.

Beyond the scope of fair use, without the written permission of the Company, no individual or entity may extract, copy, or distribute any part or all of the content of this document in any form.

Fuzhou Rockchip Electronics Co., Ltd.

Address: No. 18, Area A, Software Park, Tongpan Road, Fuzhou, Fujian Province

Website: www.rock-chips.com

Customer Service Phone: +86-4007-700-590

Customer Service Fax: +86-591-83951833

Customer Service Email: fae@rock-chips.com

---

Preface

Overview

Product Versions

Chip Name	RT Thread Version
All chips supporting RT Thread

Intended Audience

This document (guide) is mainly applicable to the following engineers: Technical Support Engineers Software Development Engineers

Revision History

Date	Version	Author	Description
2019-07-15	V1.0.0	Huang Jiacha	Initial release
2019-08-15	V1.1.0	Huang Jiacha	Format adjustment, added Color Key usage instructions
2019-11-18	V1.2.0	Huang Jiacha	Added LUT update method and AOD mode description
2020-03-06	V1.3.0	Huang Jiacha	Added layer z-order configuration description
2020-05-20	V1.3.1	Huang Jiacha	Format modification

---

[TOC]

Overview

The Rockchip RT-Thread display driver registers the LCD driver with the OS based on the RT-Thread IO device driver model, supporting GUI applications such as LittlevGL. To fully leverage the performance of the Rockchip display module, we have extended some interfaces and added support for multi-layer composition, color effect adjustment, post-scaling, MIPI switch, and other features.

Basic Concepts

CRTC: Display controller, an abstraction of the VOP (also referred to as LCDC in some documents) module inside the SoC on Rockchip platforms. Plane: A layer, an abstraction of the VOP (LCDC) module WIN layer inside the SoC on Rockchip platforms. Encoder/Connector: Software abstraction of output converters, referring to display interfaces such as RGB, LVDS, DSI, eDP, HDMI, etc. Panel: Abstraction of various LCD, HDMI, and other display devices.

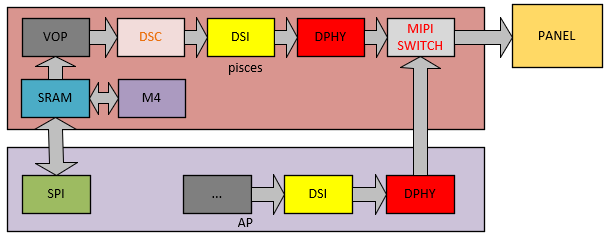

Display Path

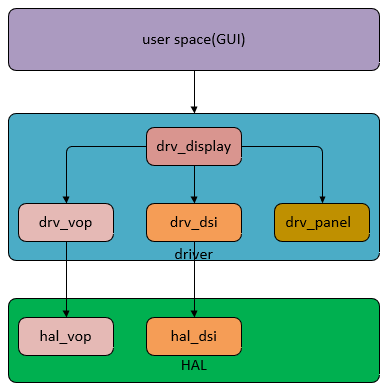

Software Framework

Driver Layer Driver Files

Driver	File	Description
Core	bsp/rockchip-common/drivers/drv_display.c	RT-Thread display framework file, responsible for registering the display driver with RT-Thread, loading display module drivers, connecting applications with display drivers, and managing all display modules.
VOP	bsp/rockchip-common/drivers/drv_vop.c bsp/rockchip-common/drivers/drv_vop.h	VOP display module driver
DSI	bsp/rockchip-common/drivers/drv_dsi.c bsp/rockchip-common/drivers/drv_dsi.h	DSI/DPHY display module driver
PANEL	bsp/rockchip-common/drivers/drv_panel.c bsp/rockchip-common/drivers/drv_panel_cfg.h	Panel driver, abstracting panel-related operations such as initialization commands, timing, and power management.

HAL Layer Driver Files

Driver	File	Description
Core	bsp/rockchip-common/hal/lib/hal/inc/hal_display.h	Definition of basic display-related data structures
VOP	bsp/rockchip-common/hal/lib/hal/src/hal_vop.c bsp/rockchip-common/hal/lib/hal/inc/hal_vop.h	Implementation of VOP module hardware basic functions
DSI	bsp/rockchip-common/hal/lib/hal/src/hal_dsi.c bsp/rockchip-common/hal/lib/hal/inc/hal_dsi.h	Implementation of DSI/DPHY module hardware functions

Common Interface Description

RT-Thread GUI applications and drivers interact through various controls (similar to IOCTL under Linux). The currently extended controls are mainly as follows:

Control	Description
RK_DISPLAY_CTRL_ENABLE	Enable the display device
RK_DISPLAY_CTRL_DISABLE	Disable the display device
RK_DISPLAY_CTRL_SET_PLANE	Set the specified layer
RK_DISPLAY_CTRL_SET_SCALE	Set post-scaling
RK_DISPLAY_CTRL_LOAD_LUT	Configure the lookup table for bpp format
RK_DISPLAY_CTRL_SET_COLOR_MATRIX	Set the color conversion matrix
RK_DISPLAY_CTRL_SET_GAMMA_COE	Set the gamma adjustment coefficient
RK_DISPLAY_CTRL_SET_BCSH	Configure BCSH adjustment coefficients for brightness, contrast, saturation, and hue
RK_DISPLAY_CTRL_SET_POST_CLIP	Set the clip coefficient
RK_DISPLAY_CTRL_MIPI_SWITCH	Switch the MIPI switch path

Key Data Structure Description

struct display_state

The core structure of the display driver, including the device structure defined in RTT, graphic_info, and the structure abstracting hardware devices on Rockchip platforms.

Parameters	Description
struct rt_device_graphic_info graphic_info	Structure describing display device information in the RTT driver
struct rt_device lcd	LCD device structure
uint32_t *rtt_framebuffer	Address of the framebuffer in the RTT driver
struct crtc_state crtc_state	Describes the Rockchip display controller VOP
struct connector_state conn_state	Describes the Rockchip display conversion module MIPI DSI
struct panel_state panel_state	Describes display device initialization commands, power, and other related information
struct DISPLAY_MODE_INFO mode	Describes scanning timing and other panel-related information

struct crtc_state

Structure describing the Rockchip processor VOP module, mainly including the following information:

Parameters	Description
struct VOP_REG *hw_base	VOP module register base address
const struct rockchip_crtc_funcs *funcs	Function pointers implementing basic VOP module functions
struct CRTC_WIN_STATE win_state	Structure of the WIN layer
struct VOP_POST_SCALE_INFO post_scale	Describes post-scaling information
uint8_t irqno	VOP module interrupt number
uint8_t power_state	Power state

struct CRTC_WIN_STATE

Structure describing the VOP module WIN layer of the Rockchip processor, mainly including the following information:

Parameters	Description
bool winEn	Layer control switch, 0: disable layer, 1: enable layer
uint8_t winId	Layer specification, 0,1,2 represent win0, win1, win2 respectively
uint8_t zpos	Layer z-order configuration, 0,1,2 represent layer order from low to high
uint8_t format	Format configuration, refer to rt-thread/include/rtdef.h for configurable values
uint32_t yrgbAddr	RGBX format address or YUV data Y component address
uint32_t cbcrAddr	YUV data UV component address
uint16_t xVir	Virtual width, requires 4-byte alignment
uint16_t srcX	X coordinate of the layer display position on the screen
uint16_t srcY	Y coordinate of the layer display position on the screen
uint16_t srcW	Width of the layer displayed on the screen
uint16_t srcH	Height of the layer displayed on the screen
uint8_t hwFormat	Driver-converted hardware configuration, no need to configure at application layer
uint16_t hwCrtcX	Driver-converted hardware configuration, no need to configure at application layer
uint16_t hwCrtcY	Driver-converted hardware configuration, no need to configure at application layer
uint16_t xLoopOffset	X direction loop configuration
uint16_t yLoopOffset	Y direction loop configuration
bool alphaEn	Alpha enable configuration
uint8_t alphaMode	Alpha mode, global alpha: VOP_ALPHA_MODE_USER_DEFINED or per-pixel alpha: VOP_ALPHA_MODE_PER_PIXEL
uint8_t alphaPreMul	Whether alpha is premultiplied: YES: VOP_PREMULT_ALPHA, NO: VOP_NON_PREMULT_ALPHA
uint8_t alphaSatMode	Whether to modify the alpha value: 1: alpha = alpha + alpha[7], 0: alpha value no change, recommended to be 0
uint8_t globalAlphaValue	Global alpha value: 0~0xff
uint32_t *lut	Lookup table for bpp format, refer to the definition in display_test.c, or user-defined

struct VOP_POST_SCALE_INFO

Structure describing the post-scaling of the Rockchip processor VOP module, mainly including the following information:

Parameters	Description
uint16_t srcW	Resolution of the source in the x direction
uint16_t srcH	Resolution of the source in the y direction
uint16_t dstX	X coordinate of the display position after scaling
uint16_t dstY	Y coordinate of the display position after scaling
uint16_t dstW	Width displayed after scaling
uint16_t dstH	Height displayed after scaling
bool postScaleEn	Hardware scaling enable configuration, determined by driver, no need to configure at application layer
eVOP_PostSclMode postSclHmode	Hardware scaling factor, calculated by driver, no need to configure at application layer
eVOP_PostSclMode postSclVmode	Hardware scaling factor, calculated by driver, no need to configure at application layer

struct VOP_BCSH_INFO

Structure describing the post BCSH of the Rockchip processor VOP module, mainly including the following information:

Parameters	Description
uint8_t brightness	Adjust brightness, range 0~100, default value 50
uint8_t contrast	Adjust contrast, range 0~100, default value 50
uint8_t satCon	Adjust saturation, range 0~100, default value 50
uint8_t hue	Adjust hue, range 0~100, default value 50

struct VOP_COLOR_MATRIX_INFO

Structure describing the post color matrix of the Rockchip processor VOP module, mainly including the following information:

Parameters	Description
bool colorMatrixEn	Control switch
uint8_t *colorMatrixCoe	Conversion matrix coefficients
uint8_t *colorMatrixOffset	Conversion matrix offset

Example: bt709tobt2020 conversion matrix:

{0.6274, 0.3293, 0.0433},
{0.0691, 0.9195, 0.0114},
{0.0164, 0.0880, 0.8956}

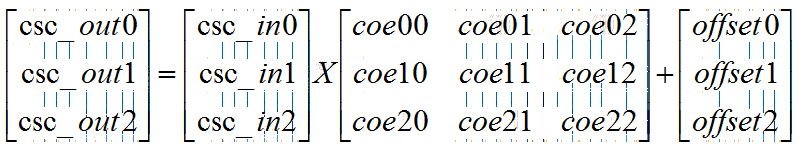

After fixed-point conversion with 0x80 (bit7 is the sign bit):

coe00 = 0.6274 * 0x80  = 0x50
coe01 = 0.3293 * 0x80  = 0x2a
coe02 = 0.0433 * 0x80  = 0x05

Similarly:

colorMatrixCoe[3][3] = {
    {0x50, 0x2a, 0x05},
    {0x05, 0x75, 0x02},
    {0x02, 0x08, 0x72}
};

struct VOP_POST_CLIP_INFO

Structure describing the post clip of the Rockchip processor VOP module, mainly including the following information:

Parameters	Description
bool postClipEn	Control switch
uint8_t postYThres	Value to clip

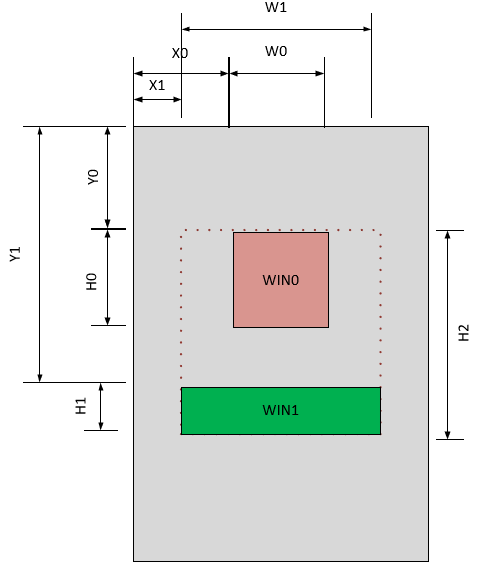

Alignment Requirements

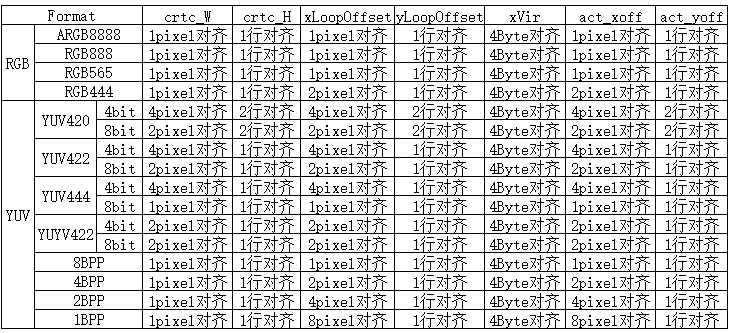

Data Alignment Requirements

Panel Alignment Requirements

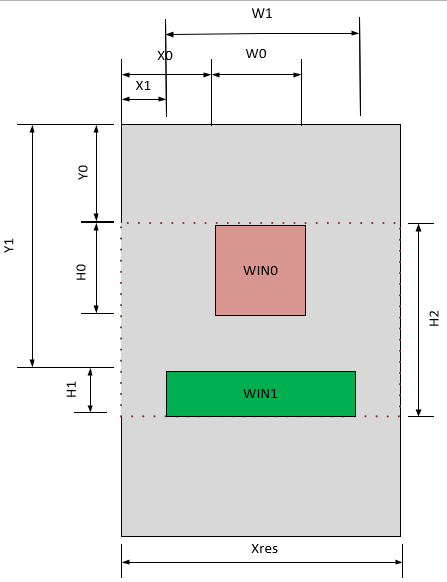

Some panels have their own alignment requirements. Taking the S6E3HC2 panel as an example:

When configured as 1440x3120, the DSC slice size is 720x65, so the display position during area refresh needs to be aligned by 720x65, and the display area size needs to be aligned by 720x195.

When configured as 720x1560, the DSC slice size is 360x52, so the display position during area refresh needs to be aligned by 360x52, and the display area size needs to be aligned by 360x390.

Panel Configuration Description

Selecting a Driver-Supported Panel

Select the configuration file for the corresponding panel according to the following path:

cd bsp/rockchip-pisces
    scons --menuconfig
        RT-Thread rockchip common drivers  --->
            Panel Type (R17 SS mipi panel, resolution is 1080x2340)  --->

Adding Support for a New Panel

1. Enter the panel configuration file directory: cd bsp/rockchip-common/drivers/panel_cfg.

2. Copy a .h file from the current directory as new_panel.h, refer to section 6.4 of this document, and modify the panel configuration parameters according to the panel spec definition.

3. Go back to the parent directory: cd ../; i.e., bsp/rockchip-common/drivers/.

4. Open the Kconfig file, search for "Panel Type", and refer to other config RT_USING_PANEL definitions to define the new panel configuration RT_USING_PANEL_NEW_PANEL.

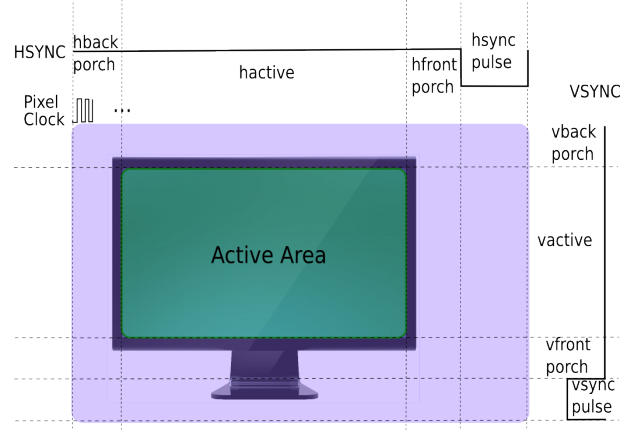

Common Scanning Timing Diagram

Panel Configuration Parameter Description

Parameters	Description
RT_HW_LCD_XRES	Panel horizontal resolution, corresponding to hactive in 6.3
RT_HW_LCD_YRES	Panel vertical resolution, corresponding to vactive in 6.3
RT_HW_LCD_PIXEL_CLOCK	Pixel clock, unit: khz
RT_HW_LCD_LANE_MBPS	MIPI DPHY CLK Lane clock, unit: Mbps
RT_HW_LCD_LEFT_MARGIN	Panel left blanking, corresponding to hback-porch in 6.3
RT_HW_LCD_RIGHT_MARGIN	Panel right blanking, corresponding to hfront-porch in 6.3
RT_HW_LCD_UPPER_MARGIN	Panel upper blanking, corresponding to vback-porch in 6.3
RT_HW_LCD_LOWER_MARGIN	Panel lower blanking, corresponding to vfront-porch in 6.3
RT_HW_LCD_HSYNC_LEN	Panel horizontal sync time, corresponding to hsync-porch in 6.3
RT_HW_LCD_VSYNC_LEN	Panel vertical sync time, corresponding to vsync-porch in 6.3
RT_HW_LCD_CONN_TYPE	Panel type, e.g., RK_DISPLAY_CONNECTOR_DSI
RT_HW_LCD_BUS_FORMAT	Panel interface type, e.g., MEDIA_BUS_FMT_RGB888_1X24
RT_HW_LCD_VMODE_FLAG	Panel polarity, DSC configuration support, etc.
RT_HW_LCD_INIT_CMD_TYPE	CMD type, CMD_TYPE_DEFAULT defaults to mipi CMD
RT_HW_LCD_DISPLAY_MODE	CMD mode and video mode selection
RT_HW_LCD_AREA_DISPLAY	Whether area refresh is supported
RT_HW_LCD_XACT_ALIGN	Panel display area width alignment requirement, unit: pixels
RT_HW_LCD_YACT_ALIGN	Panel display area height alignment requirement, unit: pixels
RT_HW_LCD_XPOS_ALIGN	Panel display area X coordinate alignment requirement, unit: pixels
RT_HW_LCD_YPOS_ALIGN	Panel display area Y coordinate alignment requirement, unit: pixels
struct rockchip_cmd cmd_on[]	Panel initialization commands
struct rockchip_cmd cmd_off[]	Panel deinitialization commands
struct rockchip_cmd cmd_aod_on[]	Panel enter AOD mode initialization commands
struct rockchip_cmd cmd_aod_off[]	Panel exit AOD mode initialization commands

Panel Initialization Command Description

1. The following uses MIPI DSI CMD as an example:

The first 3 bytes (hexadecimal) represent Data Type, Delay, and Payload Length respectively. Data starting from the fourth byte represents the actual valid data with length equal to Payload Length.

2. Parsing of the first command:

Data Type: 0x05 (DCS Short Write) Delay: 0x05 (5 ms) Payload Length: 0x01 (1 Byte) Payload: 0x11

3. Parsing of the second command:

Data Type: 0x29 (Generic Long Write) Delay: 0x00 (0 ms) Payload Length: 0x03 (3 Bytes) Payload: 0xf0 0x5a 0x5a

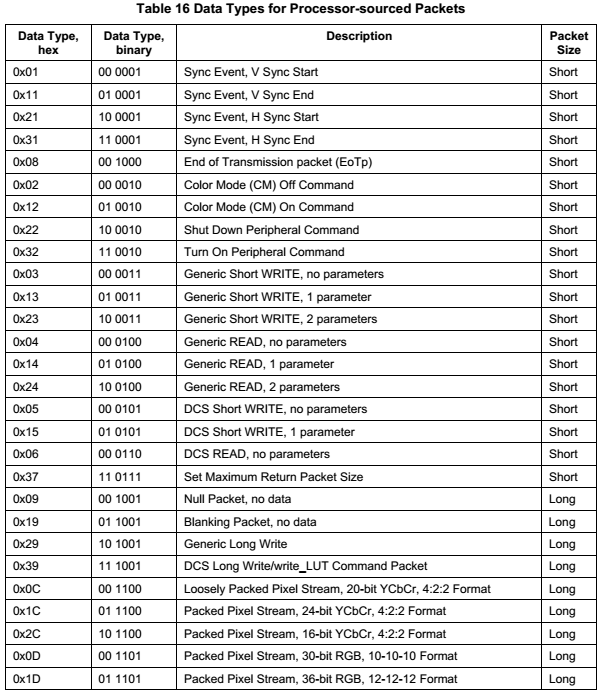

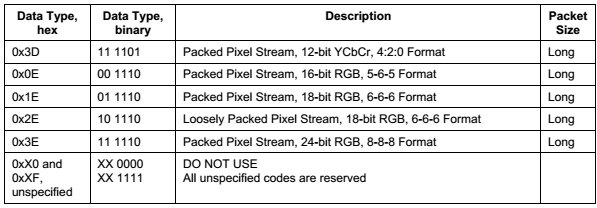

4. Data Type Definition

5. DCS Write

A DCS packet includes one byte of dcs command and n bytes of parameters. If n < 2, the Payload will be packaged as a Short Packet. n = 0 means sending only the dcs command without parameters, Data Type is 0x05; n = 1 means sending the dcs command with one parameter, Data Type is 0x15. If n >= 2, the Payload will be packaged as a Long Packet. At this point, the dcs command is sent with n parameters, Data Type is 0x39.

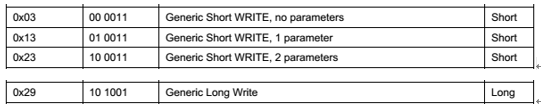

6. Generic Write

A Generic Packet includes n bytes of parameters. If n < 3, the Payload will be packaged as a Short Packet. n = 0 means no parameters, Data Type is 0x03; n = 1 means 1 parameter, Data Type is 0x13; n = 2 means 2 parameters, Data Type is 0x23. If n >= 3, the Payload will be packaged as a Long Packet, meaning n parameters, Data Type is 0x29.

7. Delay

Indicates how many ms to delay after the current Packet is sent before starting to send the next command.

8. Payload Length

Indicates the payload length of the Packet.

9. Payload

Indicates the payload of the Packet, with length equal to Payload Length.

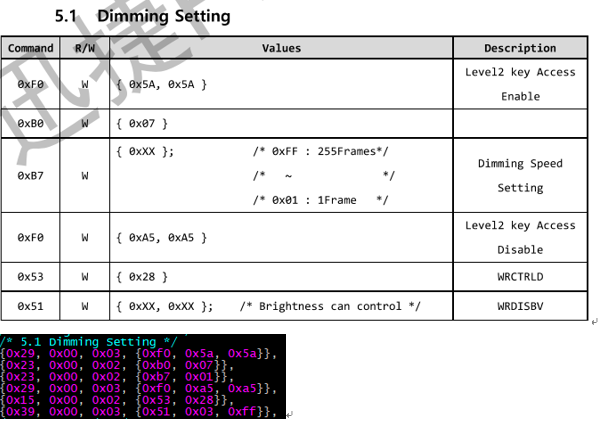

10. Example

Display Test Demo

Test Cases Supported by display_test

Use the command:

display_test cmd
dsc; winloop; winmove; winalpha; scale; coe; bcsh; gamma; clip; mipi_switch; ebook; color_bar

CMD	Description
winloop	Test layer loop function
winmove	Test layer movement
dsc	Test area refresh based on 2k panel DSC alignment requirements
winalpha	Test layer alpha function
scale	Test post-scaling function
coe	Test color conversion function, demo uses 709to2020
bcsh	Test bcsh for changing brightness, contrast, saturation, hue
gamma	Change display effect through gamma curve
clip	Test clip function
mipi_switch	Test mipi switch function
ebook	Display 1bpp format image e-book demo
color_bar	Display color_bar loop demo

Demo Description

1. LCD Device

g_display_dev = rt_device_find("lcd");
RT_ASSERT(g_display_dev != RT_NULL);

2. Open the lcd device

ret = rt_device_open(g_display_dev, RT_DEVICE_FLAG_RDWR);
RT_ASSERT(ret == RT_EOK);

3. Enable the lcd device

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_ENABLE, NULL);
RT_ASSERT(ret == RT_EOK);

4. Get panel-related information

ret = rt_device_control(g_display_dev, RTGRAPHIC_CTRL_GET_INFO, (void *)graphic_info);
RT_ASSERT(ret == RT_EOK);

5. Initialize win_config, post_scale configuration information

• win_config initialization:

static void display_win_init(struct CRTC_WIN_STATE *win_config)
{
    win_config->winEn = true;
    win_config->winId = 0;
    win_config->zpos  = 0;
    win_config->format   = SRC_DATA_FMT;
    win_config->yrgbAddr = (uint32_t)rtt_framebuffer_test;
    win_config->cbcrAddr = (uint32_t)rtt_framebuffer_uv;
    win_config->yrgbLength = 0;
    win_config->cbcrLength = 0;
    win_config->xVir = SRC_DATA_W;
    win_config->srcX = 0;
    win_config->srcY = 0;
    win_config->srcW = SRC_DATA_W;
    win_config->srcH = SRC_DATA_H;
    win_config->crtcX = 0;
    win_config->crtcY = 0;
    win_config->crtcW = SRC_DATA_W;
    win_config->crtcH = SRC_DATA_H;
    win_config->xLoopOffset = 0;
    win_config->yLoopOffset = 0;
}

• post_scale initialization (full screen display without scaling)

static void display_post_init(struct CRTC_WIN_STATE *win_config,
                              struct VOP_POST_SCALE_INFO *post_scale,
                              struct rt_device_graphic_info *graphic_info)
{
    post_scale->srcW = graphic_info->width;
    post_scale->srcH = graphic_info->height;
    post_scale->dstX = 0;
    post_scale->dstY = 0;
    post_scale->dstW = graphic_info->width;
    post_scale->dstH = graphic_info->height;
}

• post_scale initialization (area refresh with 2x zoom in horizontal and vertical directions)

static void display_post_init(struct CRTC_WIN_STATE *win_config,
                              struct VOP_POST_SCALE_INFO *post_scale,
                              struct rt_device_graphic_info *graphic_info)
{
    post_scale->srcW = graphic_info->width / 2;
    post_scale->srcH = win_config->srcH;
    post_scale->dstX = 0;
    post_scale->dstY = 0;
    post_scale->dstW = graphic_info->width;
    post_scale->dstH = win_config->srcH * 2;
}

6. If it is a bpp format image, load the lut palette; if not bpp format, it can be ignored

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_LOAD_LUT, &lut_state);
RT_ASSERT(ret == RT_EOK);

7. Configure post_scale to confirm the data size before scaling and the display size after scaling

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_SCALE, post_scale);
RT_ASSERT(ret == RT_EOK);

8. Configure win_config layer information

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_PLANE, win_config);
RT_ASSERT(ret == RT_EOK);

9. Submit display

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_COMMIT, NULL);
RT_ASSERT(ret == RT_EOK);

The process for displaying one frame can follow steps 1 to 9 above. If refreshing multiple frames, after modifying win_config and post_scale configurations, repeat steps 7, 8, and 9.

Area Refresh Coordinate Configuration Description

1. Configuration demo for panels supporting area refresh in both X and Y directions

• The red area is the win0 layer, with coordinates (X0,Y0) and size (W0,H0). Configure as:

win_config->winId = 0;
win_config->winEn = 1;
……
win_config->srcX = X0;
win_config->srcY = Y0;
win_config->srcW = W0;
win_config->srcH = H0;

• The green area is the win1 layer, with coordinates (X1,Y1) and size (W1,H1). Configure as:

win_config->winId = 1;
win_config->winEn = 1;
……
win_config->srcX = X1;
win_config->srcY = Y1;
win_config->srcW = W1;
win_config->srcH = H1;

• Post-scaling configuration:

post_scale->srcW = W1;
post_scale->srcH = H2;
post_scale->dstX = X1;
post_scale->dstY = Y0;
post_scale->dstW = W1;
post_scale->dstH = H2;

• In the actual display configuration code, the post-scaling parameters must be configured first:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_SCALE, post_scale);
RT_ASSERT(ret == RT_EOK);

• Then call WIN0 and WIN1 configuration:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_PLANE, win_config);
RT_ASSERT(ret == RT_EOK);

• Finally submit the display:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_COMMIT, NULL);
RT_ASSERT(ret == RT_EOK);

2. Configuration demo for panels supporting area refresh only in the Y direction, not the X direction

• The red area is the win0 layer, with coordinates (X0,Y0) and size (W0,H0). Configure as:

win_config->winId = 0;
win_config->winEn = 1;
……
win_config->srcX = X0;
win_config->srcY = Y0;
win_config->srcW = W0;
win_config->srcH = H0;

• The green area is the win1 layer, with coordinates (X1,Y1) and size (W1,H1). Configure as:

win_config->winId = 1;
win_config->winEn = 1;
……
win_config->srcX = X1;
win_config->srcY = Y1;
win_config->srcW = W1;
win_config->srcH = H1;

• Post-scaling configuration:

post_scale->srcW = Xres;
post_scale->srcH = H2;
post_scale->dstX = 0;
post_scale->dstY = Y0;
post_scale->dstW = Xres;
post_scale->dstH = H2;

• Since X-direction area refresh is not supported, compared to case 1, the post scale src and dstW are both configured to the actual panel width Xres, dstX is configured to 0, and the rest is the same as in case 1. The actual display configuration code requires configuring the post-scaling parameters first:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_SCALE, post_scale);
RT_ASSERT(ret == RT_EOK);

• Then call WIN0 and WIN1 configuration:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_SET_PLANE, win_config);
RT_ASSERT(ret == RT_EOK);

• Finally submit the display:

ret = rt_device_control(g_display_dev, RK_DISPLAY_CTRL_COMMIT, NULL);
RT_ASSERT(ret == RT_EOK);

Color Key Usage Instructions

VOP supports a key color transparency effect, i.e., specifying a certain color in a layer to make it transparent to the layer below or the background layer. The driver provides the colorKey parameter in win_config to configure the color key function, where bits[23:0] represent the RGB three-component key color data, and bit24 is used to enable or disable the color key function.

The following describes the Color Key configuration method for RGB888 and RGB565 formats. R_VAL, G_VAL, B_VAL represent the values of the RGB three components to be made transparent:

#define COLOR_KEY_EN	BIT(24)

RGB888 Format Color Key Configuration Method

1. To achieve full red transparency, configure:

win_config->colorKey = 0xFF0000 | COLOR_KEY_EN;

2. To achieve full green transparency, configure:

win_config->colorKey = 0x00FF00 | COLOR_KEY_EN;

3. To achieve full blue transparency, configure:

win_config->colorKey = 0x0000FF | COLOR_KEY_EN;

That is:

win_config->colorKey = (R_VAL << 16) | (G_VAL << 8) | (B_VAL) | COLOR_KEY_EN;

RGB565 Format Color Key Configuration Method

1. To achieve full red transparency, configure:

win_config->colorKey = 0xF80000 | COLOR_KEY_EN;

2. To achieve full green transparency, configure:

win_config->colorKey = 0x00FC00 | COLOR_KEY_EN;

3. To achieve full blue transparency, configure:

win_config->colorKey = 0x0000F8 | COLOR_KEY_EN;

That is:

R_VAL_CONFIG = R_VAL << 3;  //R[4,0] -> R[7,0]

G_VAL_CONFIG = G_VAL << 2;  //G[5,0] -> G[7,0]

B_VAL_CONFIG = B_VAL << 3;  //B[4,0] -> B[7,0]

win_config->colorKey = (R_VAL_CONFIG  << 16) | (G_VAL_CONFIG << 8) | B_VAL_CONFIG  | COLOR_KEY_EN;

Method to Disable Color Key

win_config->colorKey = 0;

Method to Update LUT

When using the layer LUT, lut_en must be enabled. Once lut_en is enabled, the LUT is protected, meaning the LUT register cannot be read or written. If the LUT configuration needs to be updated when switching between different scenarios, and the lut_en switch takes effect per frame, the LUT update must follow these steps:

1. Disable LUT

   (1) Set the layer format to a non-bpp format, i.e., not any of the following formats:

   RTGRAPHIC_PIXEL_FORMAT_GRAY1
   RTGRAPHIC_PIXEL_FORMAT_GRAY4,
   RTGRAPHIC_PIXEL_FORMAT_GRAY16,
   RTGRAPHIC_PIXEL_FORMAT_GRAY256,
   RTGRAPHIC_PIXEL_FORMAT_RGB332,

   (2) Disable all layers, refresh a 32x32 size image in an area where no content is displayed on the screen. 32x32 is not a fixed size; the purpose is to refresh an invalid frame to make the lut_en disable take effect without affecting the current display on the screen.

2. Update LUT

   Update the LUT array and call RK_DISPLAY_CTRL_LOAD_LUT to update the LUT.

3. Configure a New Frame

   Set the format in win to the corresponding bpp format and refresh one frame. At this point, the new LUT takes effect.

Reference Documents

(1) Rockchip DRM Display Driver Development Guide (2) Rockchip_DRM_Panel_Porting_Guide.pdf
