DDR Development Guide Internal Document

Release Version: 1.1

Date: 2019.1.29

Security Level: Internal

Preface Development guide applicable to all platforms

Overview

Product Versions

Chip Name	Kernel Version
All chips	All kernel versions

Intended Audience

This document (guide) is mainly suitable for the following engineers:

Field Application Engineer

Software Development Engineer

Revision History

Date	Version	Author	Revision Description
2017.12.21	V1.0	He Canyang
2019.1.29	V1.1	He Zhihuan	Added RK3308 modify deskew tool

[TOC]

How to modify DDR frequency in loader

Update the DDR bin file to the latest
Use modify_ddr_bin.exe to check whether the chip supports modifying DDR frequency
After modification, generate a new loader as described in "How to synthesize our DDR bin into a complete usable loader"

We provide the tool modify_ddr_bin.exe for modifying the DDR frequency in the DDR bin file. Only RK322x, RK322xh, RK3328, RK3368, RK3399, RV1108 support frequency modification, and some chips can only be modified to certain frequencies. See the modify_ddr_bin.exe usage instructions for details.

./modify_ddr_bin.exe       //View modify_ddr_bin.exe usage instructions
./modify_ddr_bin.exe -chip 3328      //View supported parameters for 3328 DDR bin file, similar for other chips

The tool modify_ddr_bin.exe is located at:

\10.10.10.164\Common_Repository\DDR related tools\modify_ddr_bin

How to modify the serial port number and baud rate for DDR printing in loader

Update the DDR bin file to the latest
Use modify_ddr_bin.exe to check whether the chip supports modifying the serial port number and baud rate
After modification, generate a new loader as described in "How to synthesize our DDR bin into a complete usable loader"

We provide the tool modify_ddr_bin.exe for modifying the serial port number and baud rate in the DDR bin file. Not all chips support this. See the modify_ddr_bin.exe usage instructions for details.

./modify_ddr_bin.exe       //View modify_ddr_bin.exe usage instructions
./modify_ddr_bin.exe -chip 3328      //View supported parameters for 3328 DDR bin file, similar for other chips

The tool modify_ddr_bin.exe is located at:

\10.10.10.164\Common_Repository\DDR related tools\modify_ddr_bin

Which chips support DDR frequency scaling

DDR frequency scaling is implemented at different stages and in different kernel branches. The overall support is as follows:

Chip	uboot	kernel 4.4	kernel 3.10	kernel 3.0
RK3026				Supported
RK3028A				Supported
RK3036		Not supported	Not supported	Not supported
RK3066				Supported
RK3126B, RK3126C			Supported, trust flow
RK3126B, RK3126C			Supported, non-trust flow
RK3126			Supported
RK3128			Supported
RK3188			Supported
RK3288		Supported, trust flow	Supported
RK322x	Supported		Supported, trust flow
RK322xh			Supported, trust flow
RK3328			Supported, trust flow
RK3368		Supported, trust flow	Supported, trust flow
RK3399		Supported, trust flow
RV1108			Supported

How to check DDR capacity - Supplement

In addition to the content described in the corresponding section of the public document "DDR Development Guide", internal materials supplement the following information:

For DDR capacity information in the kernel, those using the trust flow do not print this information. Therefore, kernel 4.4 has no DDR capacity information printing, and kernel 3.10 using the trust flow also does not. Refer to the previous section "Which chips support DDR frequency scaling" to determine which chips use the trust flow under kernel 3.10.

If you do not understand basic DDR channel, row, column, bank, chip select, and data width information, please ask HR or an assistant for the training document "DRAM Simple Introduction.ppt"

How to check DDR bandwidth utilization - Supplement

In addition to the content described in the corresponding section of the public document "DDR Development Guide", internal materials supplement the following information:

Regardless of the kernel version, to view detailed data volume information for each port, you need to push a bandwidth measurement tool (currently one tool per chip, which is messy and being consolidated into one), and you need to disable load-based frequency scaling.

Disable load-based frequency scaling, see "How to disable DDR load-based frequency scaling and keep only scene-based frequency scaling" or "How to fix DDR frequency"
Push the corresponding software. For software usage and result viewing, see the software's documentation.

How to adjust ODT and drive strength

DDR controller-side drive strength (DS) and ODT adjustment

Chip: RK3026, RK3028A

Code location: ddr_update_odt() function in arch/arm/mach-rk2928/ddr.c

Chip: RK3126, RK3128

Code location: ddr_update_odt() function in arch/arm/mach-rockchip/ddr_rk3126.c

Chip: RK3126B, RK3126C non-trust flow

Code location: ddr_update_odt() function in arch/arm/mach-rockchip/ddr_rk3126b.c

Modification:

All uses of PHY_RTT_XXXohm are DDR controller-side ODT

All uses of PHY_RON_XXX are DDR controller-side drive strength (DS)

These set the single-ended pull-up/pull-down resistance values

Chip: RK3066

Code location: ddr_update_odt() function in arch/arm/mach-rk30/ddr.c

Chip: RK3188

Code location: ddr_update_odt() function in arch/arm/mach-rockchip/ddr_rk30.c

Chip: RK3288 kernel 3.10

Code location: ddr_update_odt() function in arch/arm/mach-rockchip/ddr_rk32.c

Modification:

The following code is responsible for modifying the DDR controller-side drive strength and ODT. Change the tmp value passed to it.
```
if(cs > 1)
{
    pPHY_Reg->ZQ1CR[0] = tmp;
    dsb();
}
PHY_Reg->ZQ0CR[0] = tmp;
dsb();
```
The definition of each bit in tmp is as follows:

[19:15] bit for ODT pull-up configuration

[14:10] bit for ODT pull-down configuration

[9:5] bit for Output Impedance pull-up configuration

[4:0] bit for Output Impedance pull-down configuration

The drive strength (DS) and ODT values can be configured according to the two configuration tables below

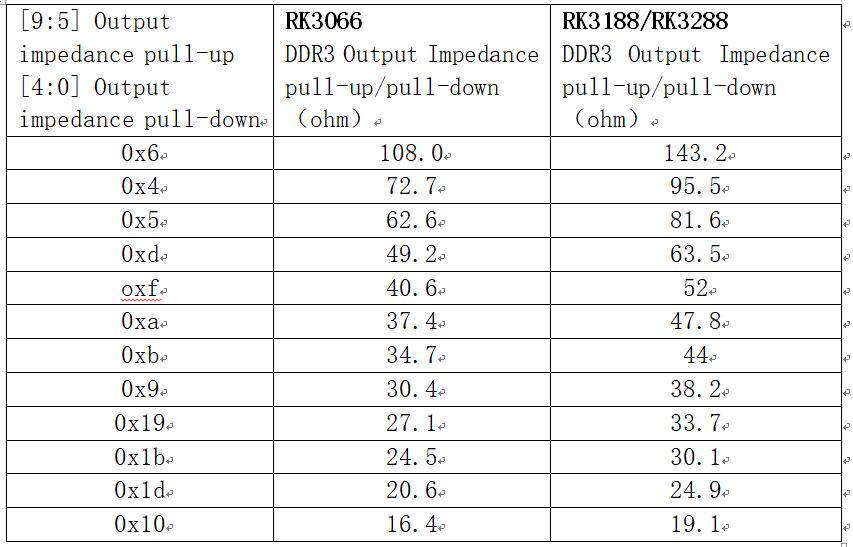

Drive strength (DS) configuration table:

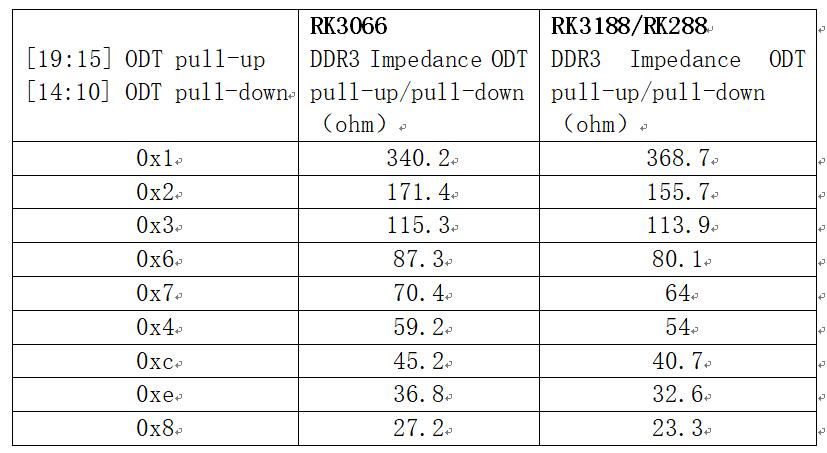

ODT configuration table:

Chip: RK3126B, RK3126C trust flow

Code location: arch/arm/boot/dts/rk312x_ddr_default_timing.dtsi

Chip: RK322x

Code location: arch/arm/boot/dts/rk322x_dram_default_timing.dtsi

Chip: RK322xh, RK3328

Code location:

arch/arm64/boot/dts/rk322xh-dram-default-timing.dtsi

arch/arm64/boot/dts/rk322xh-dram-2layer-timing.dtsi

Chip: RK3368

Code location: arch/arm64/boot/dts/rk3368_dram_default_timing.dtsi

Chip: RV1108

Code location: arch/arm/boot/dts/rv1108_dram_default_timing.dtsi

Chip: RK3288 trust flow

Code location: arch/arm/boot/dts/rk3288-dram-default-timing.dtsi

Chip: RK3399

Code location: arch/arm64/boot/dts/rockchip/rk3399-dram-default-timing.dtsi

Modification:

phy_XXX_drv indicates controller-side drive strength

phy_XXX_odt indicates controller-side ODT
DDR device-side drive strength (DS) and ODT adjustment

Chip: RK3026, RK3028A

Code location: ddr_get_parameter() function in arch/arm/mach-rk2928/ddr.c

Modification:

The following code is responsible for setting the DDR device-side drive strength and ODT
```
/* DDR3 settings */
if(nMHz <= DDR3_DDR2_ODT_DISABLE_FREQ)
{
    ddr_reg.ddrMR[1] = DDR3_DS_40 | DDR3_Rtt_Nom_DIS;
}
else
{
    ddr_reg.ddrMR[1] = DDR3_DS_40 | DDR3_Rtt_Nom_120;
}

......

/* DDR2 settings */
if(nMHz <= DDR3_DDR2_ODT_DISABLE_FREQ)
{
    ddr_reg.ddrMR[1] = DDR2_STR_REDUCE | DDR2_Rtt_Nom_DIS;
}
else
{
    ddr_reg.ddrMR[1] = DDR2_STR_REDUCE | DDR2_Rtt_Nom_75;
}
```
DDR3_DS_XX, DDR2_STR_XXX indicate the corresponding DDR device-side drive strength

DDR3_Rtt_Nom_XXX, DDR2_Rtt_Nom_XXX indicate the corresponding DDR device-side ODT

Chip: RK3126, RK3128

Code location: ddr_get_parameter() function in arch/arm/mach-rockchip/ddr_rk3126.c

Chip: RK3126B, RK3126C non-trust flow

Code location: ddr_get_parameter() function in arch/arm/mach-rockchip/ddr_rk3126b.c

Modification:

The following code is responsible for setting the DDR device-side drive strength and ODT
```
/* DDR3 settings */
if (nMHz <= DDR3_DDR2_ODT_DISABLE_FREQ) {
    p_ddr_reg->ddrMR[1] = DDR3_DS_40 | DDR3_Rtt_Nom_DIS;
} else {
    p_ddr_reg->ddrMR[1] = DDR3_DS_40 | DDR3_Rtt_Nom_120;
}

......

/* LPDDR2 settings */
p_ddr_reg->ddrMR[3] = LPDDR2_DS_34;
```
DDR3_DS_XX, LPDDR2_DS_XX indicate the corresponding DDR device-side drive strength

DDR3_Rtt_Nom_XXX indicates the corresponding DDR device-side ODT

Chip: RK3066

Code location: ddr_get_parameter() function in arch/arm/mach-rk30/ddr.c

Chip: RK3188

Code location: ddr_get_parameter() function in arch/arm/mach-rockchip/ddr_rk30.c

Chip: RK3288 kernel 3.10

Code location: ddr_get_parameter() function in arch/arm/mach-rockchip/ddr_rk32.c

Modification:

The following code is responsible for setting the DDR device-side drive strength and ODT
```
/* DDR3 settings */
if(nMHz <= DDR3_DDR2_ODT_DISABLE_FREQ)
{
    p_publ_timing->mr[1] = DDR3_DS_40 | DDR3_Rtt_Nom_DIS;
}
else
{
    p_publ_timing->mr[1] = DDR3_DS_40 | DDR3_Rtt_Nom_120;
}

.......

/* LPDDR2 settings, LPDDR2 device side has no ODT */
p_publ_timing->mr[3] = LPDDR2_DS_34;

......

/* LPDDR3 settings */
p_publ_timing->mr[3] = LPDDR3_DS_34;
if(nMHz <= DDR3_DDR2_ODT_DISABLE_FREQ)
{
    p_publ_timing->mr11 = LPDDR3_ODT_DIS;
}
else
{
    p_publ_timing->mr11 = LPDDR3_ODT_240;
}
```
DDR3_DS_XX, LPDDR2_DS_XX, LPDDR3_DS_XX indicate the corresponding DDR device-side drive strength

DDR3_Rtt_Nom_XXX, LPDDR3_ODT_XXX indicate the corresponding DDR device-side ODT

Chip: RK3126B, RK3126C trust flow

Code location: arch/arm/boot/dts/rk312x_ddr_default_timing.dtsi

Chip: RK322x

Code location: arch/arm/boot/dts/rk322x_dram_default_timing.dtsi

Chip: RK322xh, RK3328

Code location:

arch/arm64/boot/dts/rk322xh-dram-default-timing.dtsi

arch/arm64/boot/dts/rk322xh-dram-2layer-timing.dtsi

Chip: RK3368

Code location: arch/arm64/boot/dts/rk3368_dram_default_timing.dtsi

Chip: RK1108

Code location: arch/arm/boot/dts/rv1108_dram_default_timing.dtsi

Chip: RK3288 trust flow

Code location: arch/arm/boot/dts/rk3288-dram-default-timing.dtsi

Chip: RK3399

Code location: arch/arm64/boot/dts/rockchip/rk3399-dram-default-timing.dtsi

Modification:

ddr3_drv, indicates DDR3 device-side drive strength

ddr4_drv, indicates DDR4 device-side drive strength

lpddr2_drv, indicates LPDDR2 device-side drive strength

lpddr3_drv, indicates LPDDR3 device-side drive strength

lpddr4_drv, indicates LPDDR4 device-side drive strength

ddr3_odt, indicates DDR3 device-side ODT

ddr4_odt, indicates DDR4 device-side ODT

lpddr2 devices do not have ODT

lpddr3_odt, indicates LPDDR3 device-side ODT

lpddr4_dq_odt, indicates LPDDR4 device-side DQ ODT

lpddr4_ca_odt, indicates LPDDR4 device-side CA ODT

How to adjust DQ, DQS, CA, CLK de-skew - Supplement

In addition to the content described in the corresponding section of the public document "DDR Development Guide", internal materials supplement the following information:

To adjust the de-skew in the loader, you need a tool. Currently, only RK322xh, RK3328, RK3308 support this.

RK322xh, RK3328

Tool path:

\\10.10.10.164\Kitkat_Repository\rk3228h\SDK_IMAGE\loader\Modify 3228H DDR parameter tool_V1.04.7z

If the device boots normally, there is no need to adjust the de-skew in the loader. Just adjust the de-skew in the kernel.
RK3308

Tool path: \\\10.10.10.164\Common_Repository\DDR related tools\modify_ddr_bin_deskew\rk3308_modify_deskew\3308_deskew.exe

Internal path for "deskew auto-scan tool":

\\10.10.10.164\Common_Repository\DDR related tools\deskew automatic scanning tool

Follow the instructions in "3228H deskew auto-scan tool user manual.pdf"

DDR features implemented on all platforms

==Only features not documented in the TRM are listed here; all features documented in the TRM have been implemented==

3399 implemented features:

Single channel support
Max capacity 4GB
DDR3 max frequency 933MHz
LPDDR3 max frequency 933MHz

3328, 322xh implemented features:

DDR3 max frequency 933MHz
LPDDR3 max frequency
DDR4 max frequency 1066MHz

1108 implemented features:

LPDDR2 support
DDR3 support
DDR3 max frequency 800MHz
LPDDR2 max frequency 533MHz
DDR3 only supports 64MB, 128MB, 256MB, 512MB capacities

3368 implemented features:

LPDDR2 not supported
DDR3 max frequency 800MHz
LPDDR3 max frequency 666MHz

3288 implemented features:

Max capacity 8GB, currently only 3288 among all RK chips supports 8GB
3GB support
1.5GB support
Single channel support
DDR3 max frequency 533MHz
LPDDR2, LPDDR3 max frequency 533MHz

3036 implemented features:

DDR2 support
DDR3, DDR2 max frequency 533MHz

3066 implemented features:

DDR2 support
DDR3, LPDDR2 max frequency 533MHz
DDR2 max frequency currently only verified up to 400MHz

3128 implemented features:

DDR2 support
DDR3, DDR2, LPDDR2 max frequency 533MHz

3126B, 3126C implemented features:

DDR2 support
DDR2, DDR3 max frequency 480MHz

322x supported features:

DDR2 support
DDR3, LPDDR3 max frequency 800MHz
DDR2, LPDDR2 max frequency 533MHz

3188 implemented features:

DDR3, LPDDR2 max frequency 533MHz

3066 implemented features:

DDR3, LPDDR2 max frequency 533MHz

[TOC]​

How to modify DDR frequency in loader​

How to modify the serial port number and baud rate for DDR printing in loader​

Which chips support DDR frequency scaling​

How to check DDR capacity - Supplement​

How to check DDR bandwidth utilization - Supplement​

How to adjust ODT and drive strength​

How to adjust DQ, DQS, CA, CLK de-skew - Supplement​

DDR features implemented on all platforms​

[TOC]

How to modify DDR frequency in loader

How to modify the serial port number and baud rate for DDR printing in loader

Which chips support DDR frequency scaling

How to check DDR capacity - Supplement

How to check DDR bandwidth utilization - Supplement

How to adjust ODT and drive strength

How to adjust DQ, DQS, CA, CLK de-skew - Supplement

DDR features implemented on all platforms
