Product Introduction

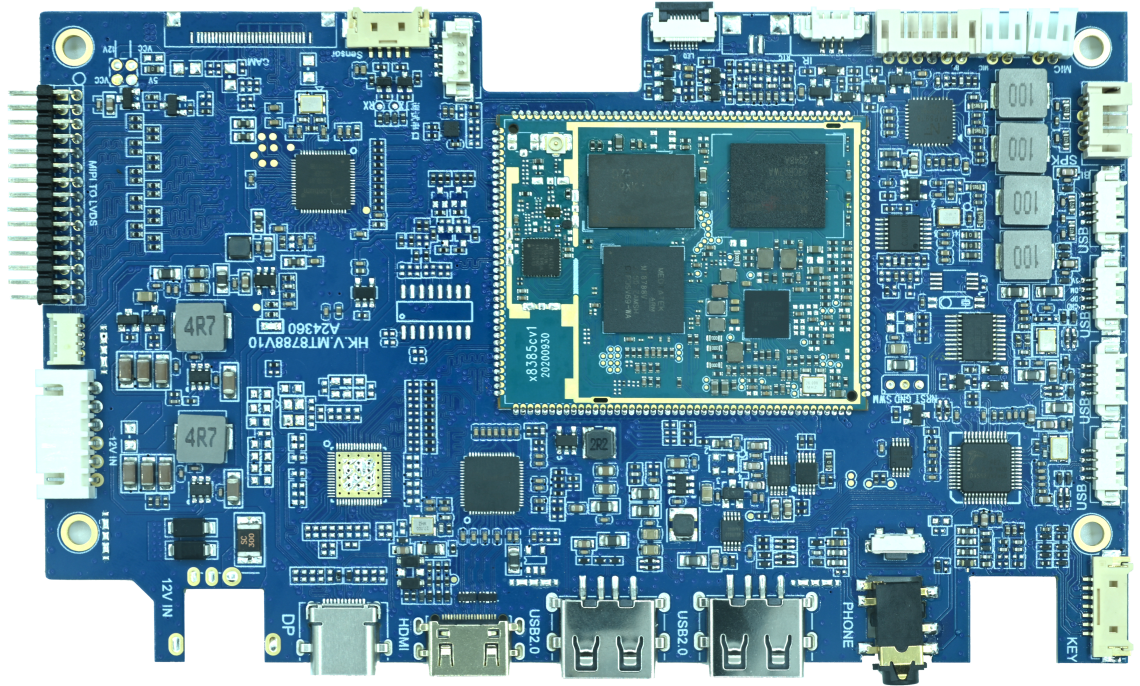

The MT8788 girlfriend-machine mainboard is an Android mainboard for audio and video products based on the MediaTek MT8788 platform. It is independently developed, manufactured, and sold by Shenzhen 9Tripod Technology Co., Ltd. MediaTek MT8788, also known as i500, is a high-performance and low-power processor built on TSMC 12nm process technology, with an octa-core architecture of quad A73 and quad A53.
Feature Highlights
- Processor platform: MT8788 / MT8385V / MT8183, Android 13.
- CPU: octa-core architecture with quad A73 + quad A53, up to 2GHz.
- Memory: 2GB / 4GB / 8GB LPDDR4.
- Storage: 4GB / 8GB / 16GB / 32GB / 64GB / 128GB eMMC options.
- USB: two external Type-A USB 2.0 ports, one Type-C USB 2.0 port, and four internal USB 2.0 wafer connectors.
- Display: one HDMI input and one LVDS output, supporting 21.5~86-inch 1920 x 1080 FHD LVDS panels.
- Camera: one MIPI 4-lane CSI camera connector; USB camera solutions are also supported.
- Audio: 3.5mm headphone output, external 2 x 3~15W speaker connector, and dual MIC input.
- Expansion: debug UART, Light/NFC, RTC, IR, backlight, touch, key, and battery-level reading interfaces.
Application Scope
This product is an Android mainboard designed for girlfriend-machine / smart display products. It is suitable for 15.6-inch to 32-inch LVDS screens and can also be adapted for larger display terminals. Typical scenarios include home entertainment, restaurant ordering, education, split-screen office use, product display, advertising playback, fitness, digital photo frames, games, video conferencing, electronic whiteboards, and digital signage.
Specifications
| Operating system | Android 13 |
|---|---|
| CPU | MT8385V / MT8183 / MT8788. The three chip platforms support seamless software switching for better mass-production cost control. |
| GPU | Mali G72 MP3 800MHz |
| Clock | Up to 2GHz |
| RAM | 4GB/6GB/8GB |
| Storage | 64GB/128GB/256GB |
| Display | 21.5~86 inches, 1920*1080 FHD, LVDS Display, supports single/dual output |
| Touch panel | USB interface |
| Camera | MIPI 4Lane interface or USB interface, supports up to 32 million pixels |
| Speaker / | Stereo channel, 2*3~15W power output, built-in EQ, high-fidelity intelligent noise reduction amplifier / |
| MIC | Two microphone interfaces |
| Sensor | Supports light sensor, G-sensor, and gesture sensor |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac, dual band |
| Bluetooth | Bluetooth 4.2 |
| USB interface | 1-way Type-C, 2-way Type-A, 4-way USB Wafer holder |
| HDMI interface | HDMI Type-C interface, supports input |
| Headphone interface | 3.5mm headphone Jack holder |
| UART interface | 2-way UART serial port |
| Keys | Power key, volume + / - keys, dual indicator signals supported |
| Power interface | 12V rated voltage, supports power supply from power board or external power adapter, compatible with UART or I2C data communication |
