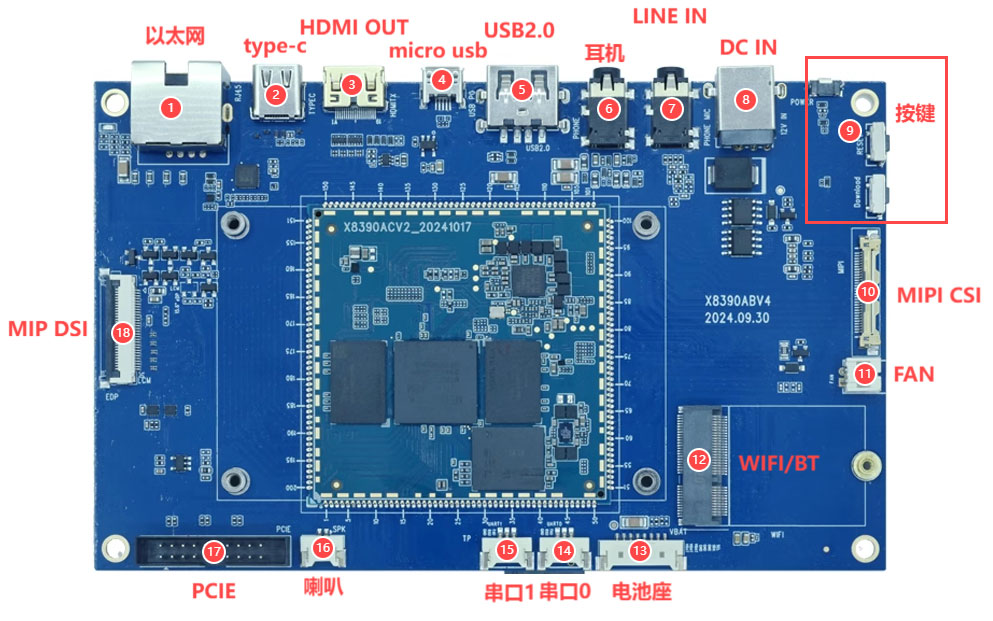

Front Interface Layout​

Front interface layout

No.NameDescription
1EthernetGigabit Ethernet through an RGMII-connected RTL8211F PHY
2Type-CFull-featured Type-C connector
3HDMI OUTHDMI output
4Micro USBUSB OTG and firmware flashing
5USB2.0USB2.0 Type-A Host
6HeadphoneHeadphone output
7Line InAnalog audio input
8DC IN12V DC input
9KeysPower, reset, and download keys from top to bottom
10MIPI CSICamera connector
11FANFan connector
12Wi-Fi/BTM.2 wireless-module socket
13Battery8.7V lithium-battery connector
14UART0TTL debug UART
15UART1Expansion TTL UART
16SpeakerSingle-channel speaker output
17PCIe2 × 10-pin PCIe expansion connector
18MIPI DSIDisplay connector

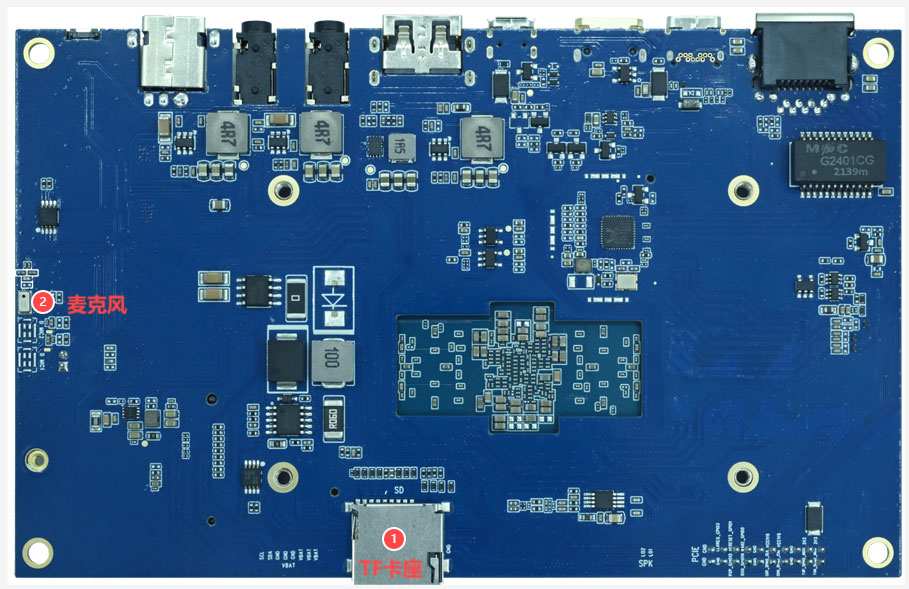

Rear Interface Layout​

Rear interface layout

No.NameDescription
1TF cardExternal boot or data storage
2Digital microphoneOn-board digital microphone, MIC2702 by default

Resource Groups​

Display and Touch​

  • MIPI DSI display connector.
  • eDP display resources.
  • HDMI OUT.
  • I2C touch, power, reset, and backlight signals.

Networking and Wireless​

  • RTL8211F Gigabit Ethernet.
  • AW-CB451NF Wi-Fi 6 / Bluetooth 5.0 module.
  • PCIe expansion for high-speed peripherals.

Debugging and Upgrade​

  • UART0 is the default debug UART.
  • Micro USB is used for firmware flashing or USB Device mode.
  • The download key enters the MediaTek download mode.
