Hardware Resources

Connector Layout​

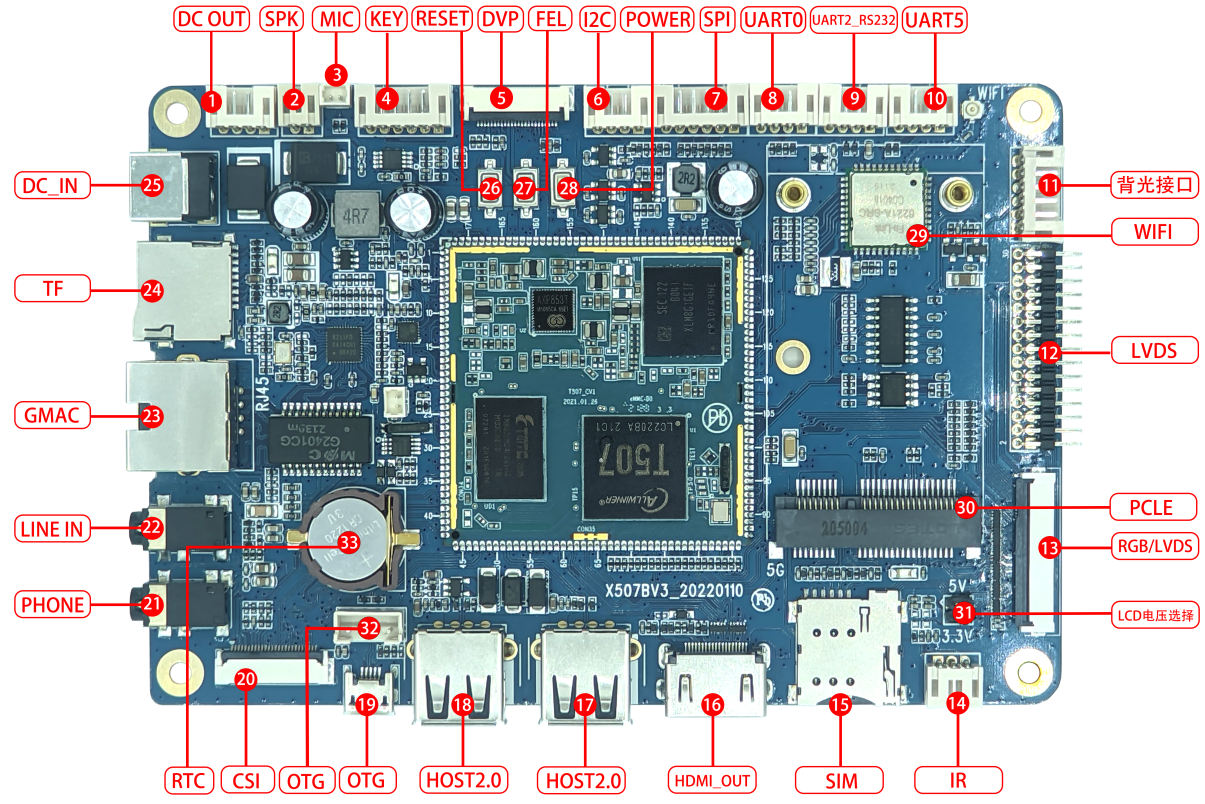

X507 connector layout

Interface Index​

No.NameDescription
1DC OUT12V and 5V DC power outputs
2SpeakerExternal speaker connector
3MicrophoneMicrophone expansion connector
4Key header6-pin PH header for power, reset, and upgrade keys
5Parallel cameraStandard 24-pin parallel-camera connector
6I2C1I2C interface
7SPISPI interface
8UART0UART0 TTL-level debug port
9UART2UART selectable as TTL or RS-232 through resistor population
10UART5UART selectable as TTL or RS-232 through resistor population
11BacklightExternal panel backlight
12LVDSConnector for an LVDS panel
13LCDConnector for an RGB or LVDS panel
14Infrared receiverIntegrated infrared receiver
15SIM card slotSIM slot for 3G/4G modules
16HDMIHDMI output
17USB HostUSB 2.0 Host port
18USB HostUSB 2.0 Host port
19USB OTGFirmware download interface
20MIPI CSIMIPI camera interface
21HeadphoneHeadphone output
22Line inputAudio input
23Gigabit EthernetRTL8211F Gigabit Ethernet interface
24TF cardTF card slot
25DC input12V DC power input
26Reset keyHardware reset
27FEL keyFEL key used for firmware upgrade
28Power keyPower key
29Wi-Fi/BluetoothCombined Wi-Fi/Bluetooth module
30PCIePCIe connector for a 4G communication module
31JumperLCD voltage-selection jumper
32USB OTGFirmware download interface
33RTC batteryCR1202 RTC battery holder

Resource Groups​

Display and Touch​

  • Multiplexed RGB/LVDS LCD connector.
  • Separate LVDS and backlight connectors.
  • I2C capacitive-touch interface.
  • Type-A HDMI output.

Camera​

  • 24-pin parallel-camera connector.
  • 26-pin MIPI CSI camera connector.

Networking and Wireless​

  • RTL8211F Gigabit Ethernet PHY.
  • SDIO dual-band Wi-Fi/Bluetooth module.
  • PCIe expansion connector and SIM slot for a 4G communication module.

Debug and Upgrade​

  • UART0 is the TTL-level debug port.
  • UART2 and UART5 can be selected as TTL or RS-232 by resistor population.
  • Micro USB OTG is used for firmware download.
  • The FEL key enters the Allwinner USB upgrade mode.
