Product Introduction

The X3566 development board is based on the Rockchip RK3566 platform. It uses the X3566CV2 core board and exposes common interfaces such as HDMI, DSI/LVDS, EDP, CSI/CIF, USB, OTG, Gigabit Ethernet, SATA, PCIe, audio, IR, GPIO, TF card, keys, RTC, and Wi-Fi/Bluetooth. It is suitable for Android/Linux evaluation, display adaptation, camera debugging, peripheral-driver verification, and embedded-product development.

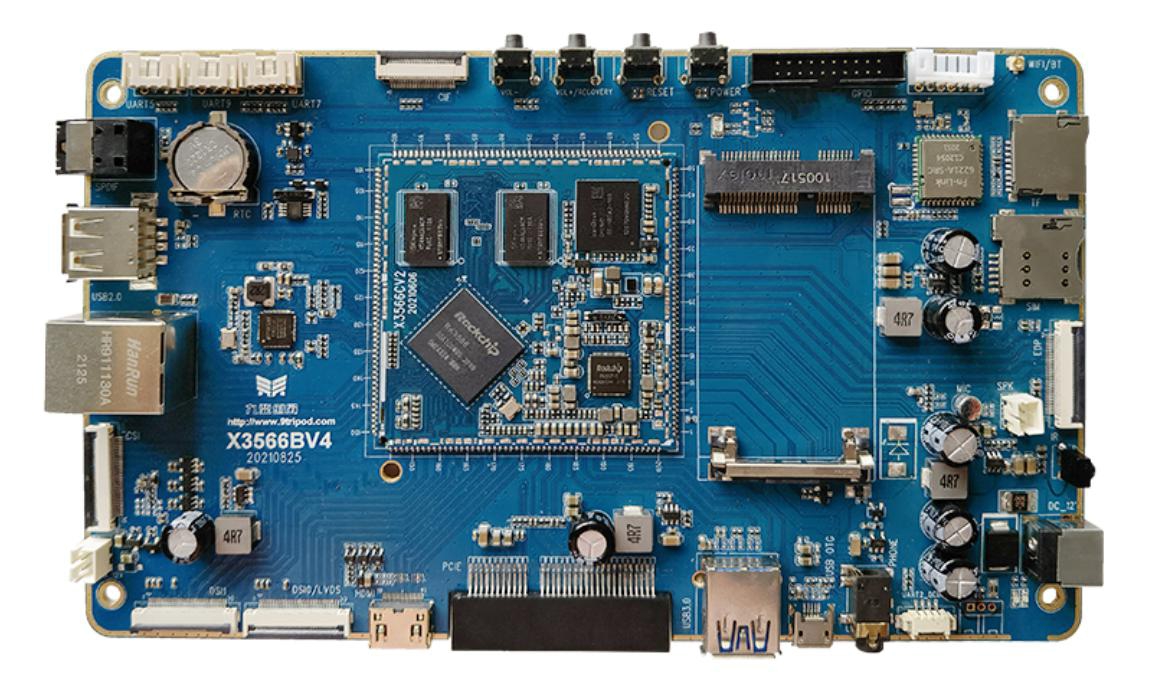

X3566 development board appearance

Feature Highlights​

  • Quad-core ARM Cortex-A55 CPU.
  • 1.8GHz x 4.
  • 1GB/2GB/4GB DDR4 memory, standard 2GB.
  • 4GB/8GB/16GB/32GB/64GB eMMC options, standard 16GB.
  • 1 USB HOST2.0, 1 USB HOST3.0, and 1 Micro USB OTG.
  • 4 TTL UART interfaces, including one debug UART.
  • TF card interface.
  • Reset button, power button, and two independent keys.
  • HDMI output and SPDIF optical audio output.
  • 20-pin GPIO expansion header.
  • DSI or LVDS display interface, DSI display interface, and EDP display interface.
  • SATA interface.
  • Integrated IR receiver.
  • External speaker, MIC input, and headphone output.
  • Stepless backlight control and capacitive touch support.
  • On-board dual-band Wi-Fi module.
  • RTC time retention.
  • Gigabit Ethernet with YT8521.
  • MIPI camera interface and standard PCIe bus interface.
  • USB mouse and keyboard support.

Core Board Features​

  • X3566CV2 core board size is 55mm x 55mm.
  • Up to 200 pins are exported, covering most CPU pins.
  • RK817 PMU is used for reliable operation.
  • Dual-channel DDR4 design, supporting 1GB/2GB/4GB capacity.
  • Android/Linux operating-system support.
  • Gigabit Ethernet support.
  • Reliability testing includes high/low temperature and repeated reboot tests.

System Configuration​

ItemParameter
CPURK3566
ClockQuad-core Cortex-A55, 1.8GHz
MemoryStandard 2GB DDR4, hardware compatible with 4GB
Storage4GB/8GB/16GB eMMC optional, standard 16GB
PMICRK817, supports adapter and battery power

Interface Parameters​

ItemParameter
LCDDSI / LVDS / EDP / HDMI output
TouchCapacitive touch
AudioHeadphone and speaker direct output, recording and playback
SD2 SDIO output channels
eMMCOn-board eMMC, pins are not separately exported
Ethernet1 Gigabit Ethernet port
USB HOST2.02 HOST2.0 channels
USB HOST3.01 HOST3.0 channel
OTG1 OTG interface
UART10 UARTs, flow-control UART supported
PWM16 PWM outputs
I2C6 I2C outputs
SPI4 SPI outputs
ADC2 ADC outputs, 6 additional ADCs are not exported
CameraCSI / BT601 / BT656 / BT1120 / RAW input

Electrical Characteristics​

ItemParameter
VBUS input5V / 2A
VBAT input3.5V to 4.2V, typical 3.7V
Output voltageVCC5V_MIDU outputs 5V for carrier-board power
Operating temperature-10°C to 70°C
Storage temperature-10°C to 40°C

Software Resources​

The X3566 development board supports Android 11 / Linux operating systems. The driver support matrix from the hardware manual is kept below:

System / DriverLinux 4.19+ / Android 11Linux 4.19+ QT
7-inch MIPI screen (1024*600)SupportedPlanned
Backlight driverSupportedPlanned
PMIC driver (RK817)SupportedPlanned
capacitive touchSupportedPlanned
eMMC driverSupportedPlanned
SD card driverSupportedPlanned
Independent buttonsSupportedPlanned
ADC driverSupportedPlanned
Turn on and offSupportedPlanned
wake up from sleepSupportedPlanned
Two-way USB HOST2.0 driverSupportedPlanned
All the way USB HOST3.0 driverSupportedPlanned
All the way OTG driverSupportedPlanned
PCIE bus driverSupportedPlanned
Fiber optic driverSupportedPlanned
RTC driverSupportedPlanned
AudioSupportedPlanned
recordingSupportedPlanned
Dual-band WIFI/BT4.0SupportedPlanned
GPSSupportedPlanned
CSI camera driverSupportedPlanned
USB port camera driverSupportedPlanned
serial portSupportedPlanned
HDMI2.0SupportedPlanned
Gigabit EthernetSupportedPlanned
USB mouse keyboardSupportedPlanned
ubootSupportedPlanned
