Core Board Pin Definition

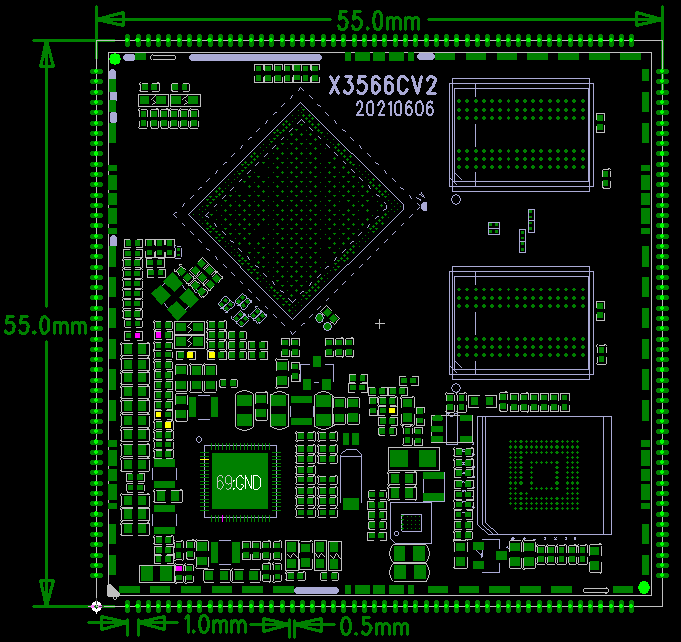

The X3566CV2 core board uses a 200-pin stamp-hole layout with a 1.0mm pin pitch. The complete 200-pin definition from the hardware manual is retained below for carrier-board design, pin-mux checking, and driver debugging.

note

All MIPI differential pairs cannot be reused as ordinary GPIO pins. Each GPIO group belongs to a voltage domain. Most GPIO groups reserve two optional resistors for voltage-domain setting, usually 1.8V or 3.3V. Because the core module is designed for general use, the exact voltage-domain resistor option is distinguished by module suffix. Select the proper order option according to the target carrier-board scenario.

Core Board Pin Definition 1: Pin 1-50

Pin No.	Signal	Type	Function
1	GPIO0_B5	GPIO	PWM1_M,I2C2_SCL_M0,SPI0_CLK_M0
2	GPIO0_C3	GPIO	PWM4
3	PMIC_32KOUT_WIFI	Clock output	32.768KHz waveform output
4	PMIC_RESET_KEY	Reset pin	PMIC reset pin
5	SNSN	Battery signal	Battery negative
6	VCC_BAT-	Battery negative	Battery negative
7	VCC_BAT+	Battery positive level	Battery positive level
8	VBUS	Power input	PMIC 5V power input, USB program download power input pin
9	TS	PMIC GPIO port	PMIC GPIO output
10	PMIC_PWRON	Boot pin	PMIC power-on pin, active low level
11	VCC_SYS	Power output	PMIC power output pin for peripheral power supply
12	VCC_SYS	Power output	PMIC power output pin for peripheral power supply
13	GND	reference place
14	GND	reference place
15	HPR_OUT	Headphone output	Headphone right channel output
16	HPL_OUT	Headphone output	Headphone left channel output
17	HP_SNS	headphone noise suppression	Headphone noise suppression pin, located near the headphone holder.
18	SPKP_OUT	Speaker output	Speaker output positive
19	SPKN_OUT	Speaker output	Speaker output negative pole
20	VCC5V_MIDU	5V power output	5V power output, can be used to power peripherals
21	MIC2_IN	Microphone input	Microphone input channel 2
22	MIC1_IN	Microphone input	Microphone input channel 1
23	EDP_TX_D3N	EDP ​​screen signal line	EDP ​​screen interface differential pair
24	EDP_TX_D3P	EDP ​​screen signal line	EDP ​​screen interface differential pair
25	EDP_TX_D2N	EDP ​​screen signal line	EDP ​​screen interface differential pair
26	EDP_TX_D2P	EDP ​​screen signal line	EDP ​​screen interface differential pair
27	EDP_TX_D1N	EDP ​​screen signal line	EDP ​​screen interface differential pair
28	EDP_TX_D1P	EDP ​​screen signal line	EDP ​​screen interface differential pair
29	EDP_TX_D0N	EDP ​​screen signal line	EDP ​​screen interface differential pair
30	EDP_TX_D0P	EDP ​​screen signal line	EDP ​​screen interface differential pair
31	EDP_TX_AUXN	EDP ​​screen signal line	EDP ​​screen interface differential pair
32	EDP_TX_AUXP	EDP ​​screen signal line	EDP ​​screen interface differential pair
33	GPIO0_C4	GPIO	PWM5,SPI0_CS1,UART0_RTS
34	GPIO0_B4	GPIO	I2C1_SDA
35	GPIO0_B3	GPIO	I2C1_SCL
36	GPIO0_C0	GPIO	PWM1,UART0_RX
37	GPIO0_C1	GPIO	PWM2,UART0_TX
38	GPIO0_A5	GPIO
39	GPIO0_C2	GPIO
40	GPIO0_A6	GPIO
41	GPIO0_A0	GPIO
42	GPIO0_A4	GPIO	SDMMC0_DET
43	GPIO2_A1	GPIO	SDMMC0_CMD,PWM10,UART5_RX
44	GPIO2_A0	GPIO	SDMMC0_D3,UART5_RTS
45	GPIO1_D7	GPIO	SDMMC0_D2,UART5_CTS
46	GPIO1_D6	GPIO	SDMMC0_D1,PWM9,UART2_RX,UART6_RX
47	GPIO1_D5	GPIO	SDMMC0_D0,PWM8,UART2_TX,UART6_TX
48	GPIO2_A2	GPIO	SDMMC0_CLK,UART5_TX
49	GPIO2_B6	GPIO	UART1_CTSn_M0,SPI1_MISO
50	GPIO2_B5	GPIO	UART1_RTSn_M0,SPI1_CLK

Core Board Pin Definition 2: Pin 51-100

Pin No.	Signal	Type	Description
51	GPIO2_B4	GPIO	UART1_TX_M0
52	GPIO2_B3	GPIO	UART1_RX_M0
53	GPIO2_C2	GPIO	I2S2_SCLK_TX_M0,UART7_CTS,SPI2_MISO
54	GPIO2_C5	GPIO	I2S2_SDI_M0,UART8_TX,SPI2_CS1
55	GPIO2_C3	GPIO	I2S2_LRCK_TX_M0,UART9_RTS,SPI2_MOSI
56	GPIO2_C4	GPIO	I2S2_SDO_M0,UART9_CTS,SPI2_CS0
57	GPIO2_B0	GPIO	SDMMC1_CLK,UART9_TX
58	GPIO2_A7	GPIO	SDMMC1_CMD,UART9_RX
59	GPIO2_A3	GPIO	SDMMC1_D0,UART6_RX
60	GPIO2_A4	GPIO	SDMMC1_D1,UART6_TX
61	GPIO2_A5	GPIO	SDMMC1_D2,UART7_RX
62	GPIO2_A6	GPIO	SDMMC1_D3,UART7_TX
63	GPIO2_C1	GPIO	UART7_RTS,SPI2_CLK_M0,I2S2_MCLK_M0
64	GPIO2_C0	GPIO	UART6_CTS_M0,SPI1_CS0_M0,I2S2_LRCK_RX_M0
65	GPIO2_B7	GPIO	UART6_RTS_M0,SPI1_MOSI_M0,I2S2_SCLK_RX_M0
66	GPIO2_B2	GPIO	UART8_CTS_M0,I2C4_SCL_M1,SDMMC1_DET
67	GPIO2_B1	GPIO	UART8_RTS_M0,I2C4_SDA_M1,SDMMC1_PWREN
68	GPIO2_C6	GPIO	UART8_RX_M0,SPI1_CS1_M0,CLK32K_OUT1
69	ADC0	ADC input	ADC input channel 0
70	ADC1	ADC input	ADC input channel 1
71	GPIO1_B2	GPIO	I2S1_SDO3_M0,I2S1_SDI1_M0
72	GPIO1_B1	GPIO	I2S1_SDO2_M0,I2S1_SDI2_M0
73	GPIO1_B0	GPIO	I2S1_SDO1_M0,I2S1_SDI3_M0
74	GPIO1_D0	GPIO
75	GPIO1_A4	GPIO	I2S1_SCLK_RX_M0,UART4_RX_M0
76	GPIO1_A0	GPIO	UART3_RX_M0,I2C3_SDA_M0
77	GPIO1_A1	GPIO	UART3_TX_M0,I2C3_SCL_M0
78	GPIO4_A7	GPIO	CAM_CLKOUT0,GMAC1_RXD0_M1,SPI3_CS1_M0,I2S1_LRCK_RX_M1
79	GPIO4_C1	GPIO	CIF_CLKIN,GMAC1_MCLKINOUT_M1,UART1_CTS_M1,I2S2_SCLK_RX_M1
80	GPIO4_C0	GPIO	CIF_CLKOUT,PWM11_IR_M1
81	GPIO4_B7	GPIO	CIF_VSYNC,GMAC1_MDIO_M1,I2S2_SCLK_TX_M1
82	GPIO4_B6	GPIO	CIF_HREF,GMAC1_MDC_M1,UART1_RTS_M1,I2S2_MCLK_M1
83	GPIO4_B0	GPIO	CAMCLKOUT1,GMAC1_RXD1_M1,SPI3_MISO_M0,I2S1_SDO0_M1
84	GPIO4_B1	GPIO	GMAC1_RXDV_CRS_M1,I2S1_SDO2_M1
85	GPIO4_A5	GPIO	CIF_8BIT_D7
86	GPIO4_A4	GPIO	CIF_8BIT_D6
87	GPIO4_A3	GPIO	CIF_8BIT_D5
88	GPIO4_A2	GPIO	CIF_8BIT_D4
89	GPIO4_A1	GPIO	CIF_8BIT_D3
90	GPIO4_A0	GPIO	CIF_D10
91	GPIO3_D7	GPIO	CIF_D9, GMAC1_TXD3_M1, ,UART1_RX_M1
92	GPIO3_D6	GPIO	CIF_D8,GMAC1_TXD2_M1,UART1_TX_M1
93	GPIO3_C7	GPIO	CIF_D1,SDMMC2_D1_M0,I2S1_SCLK_TX_M1
94	GPIO3_C6	GPIO	CIF_D0,SDMMC2_D0_M0,I2S1_MCLK_M1
95	GPIO3_D3	GPIO	CIF_D5, SDMMC2_CLK_M0, I2S1_SDI1_M1
96	GPIO3_D0	GPIO	CIF_D2,SDMMC2_D2_M0,I2S1_LRCK_TX_M1
97	GPIO3_D4	GPIO	CIF_D6,SDMMC2_DET_M0,I2S1_SDI2_M1
98	GPIO3_D5	GPIO	CIF_D7,SDMMC2_PWREN_M0,I2S1_SDI3_M1
99	GPIO4_B3	GPIO	I2C4_SCL_M0,ETH1_REFCLKO_25M_M1,SPI3_CLK_M0,I2S2_SDO_M1
100	GPIO4_B2	GPIO	I2C4_SDA_M0,GMAC_RXER_M1,SPI3_MOSI_M0,I2S2_SDI_M1

Core Board Pin Definition 3: Pin 101-150

Pin No.	Signal	Type	Description
101	GPIO4_B5	GPIO	I2C2_SCL_M1,I2S1_SDO3_M1
102	GPIO4_B4	GPIO	I2C2_SDA_M1,BT656_CLK_M1
103	GPIO3_D1	GPIO	CIF_D3,SDMMC2_D3_M0,I2S1_SDO0_M1
104	GPIO4_A6	GPIO	GMAC1_TXEN_M1,SPI3_CS0_M0,I2S1_SCLK_RX_M1
105	GPIO4_C6	GPIO	PWM13_M1,SPI3_CS0_M1,UART9_RX_M1,I2S3_SDI_M1
106	GPIO4_C5	GPIO	PWM12_M1,SPI3_MISO_M1,UART9_TX_M1,I2S3_SDO_M1
107	GPIO3_A1	GPIO	BT1120_D0,SPI1_CS0_M1,SDMMC2_D0_M1
108	GPIO3_C1	GPIO	BT1120_D13,SPI1_MOSI_M1,I2S1_SDO2_M2
109	GPIO4_C4	GPIO	SPDIF_TX_M2,I2S3_LRCK_M1
110	GPIO4_D1	GPIO	HDMITX_CEC_M0,SPI3_CS1_M1
111	GPIO4_D0	GPIO	HDMITX_SDA,I2C5_SDA_M1
112	GPIO4_C7	GPIO	HDMITX_SCL,I2C5_SCL_M1
113	GPIO3_C2	GPIO	BT1120_D14,SPI1_MISO_M1,UART5_TX_M1,I2S1_SDO3_M2
114	GPIO3_C3	GPIO	BT1120_D15,SPI1_CLK_M1,UART5_RX_M1, I2S1_SCLK_RX_M2
115	USB2_HOST2_DM	USB differential pair	USB2_HOST2_DM
116	USB2_HOST2_DP	USB differential pair	USB2_HOST2_DP
117	USB2_HOST3_DM	USB differential pair	USB2_HOST3_DM
118	USB2_HOST3_DP	USB differential pair	USB2_HOST3_DP
119	GPIO3_C0	GPIO	PWM13_M0,GMAC1_MCLKINOUT_M0,UART3_RX_M1,PDM_SDI3_M2
120	GPIO4_C3	GPIO	PWM15_IR_M1,SPI3_MOSI_M1,I2S3_SCLK_M1
121	GPIO4_C2	GPIO	PWM14_M1,SPI3_CLK_M1,I2S3_MCLK_M1
122	GPIO3_C5	GPIO	PWM15_IR_M0,SPDIF_TX_M1,GMAC1_MDIO_M0,UART7_RX_M1,I2S1_LRCK_RX_M2
123	GPIO3_C4	GPIO	PWM14_M0,GMAC1_MDC_M0,UART7_TX_M1
124	GPIO3_A7	GPIO	BT1120_D5,GMAC1_RXCLK_M0,SDMMC2_DET_M1
125	GPIO3_B3	GPIO	BT1120_D9,I2C5_SCL_M0,GMAC1_RXDV_CRS_M0
126	GPIO3_B1	GPIO	PWM8_M0,BT1120_D7,GMAC1_RXD0_M0,UART4_RX_M1
127	GPIO3_B2	GPIO	PWM9_M0,BT1120_D8,GMAC1_RXD1_M0, UART4_TX_M1
128	GPIO3_A4	GPIO	BT1120_D3,GMAC1_RXD2_M0,I2S3_LRCK_M0,SDMMC_D3_M1
129	GPIO3_A5	GPIO	BT1120_D4,GMAC1_RXD3_M0, I2S3_SDO_M0, ,SDMMC_CMD_M1
130	GPIO3_B0	GPIO	BT1120_D6,ETH1_REFCLKO_25M_M0, SDMMC_PWREN_M1
131	GPIO3_B7	GPIO	PWM12_M0,GMAC1_TXEN_M0,UART3_TX_M1
132	GPIO3_B5	GPIO	PWM10_M0,BT1120_D11,I2C3_SCL_M1,GMAC1_TXD0_M0
133	GPIO3_B6	GPIO	PWM11_IR_M0,BT1120_D12,I2C3_SDA_M1,GMAC1_TXD1_M0
134	GPIO3_A2	GPIO	BT1120_D1,GMAC1_TXD2_M0,I2S3_MCLK_M0,SDMMC2_D1_M1
135	GPIO3_A3	GPIO	BT1120_D2,GMAC1_TXD3_M0,I2S3_SCLK_M0,SDMMC2_D2_M1
136	GPIO3_A6	GPIO	BT1120_CLK,GMAC1_TXCLK_M0, I2S3_SDI_M0,SDMMC2_CLK_M1
137	MIPI_CSI_RX_D3N	CSI signal	MIPI CSI signal differential pair
138	MIPI_CSI_RX_D3P	CSI signal	MIPI CSI signal differential pair
139	MIPI_CSI_RX_D2N	CSI signal	MIPI CSI signal differential pair
140	MIPI_CSI_RX_D2P	CSI signal	MIPI CSI signal differential pair
141	MIPI_CSI_RX_D1N	CSI signal	MIPI CSI signal differential pair
142	MIPI_CSI_RX_D1P	CSI signal	MIPI CSI signal differential pair
143	MIPI_CSI_RX_D0N	CSI signal	MIPI CSI signal differential pair
144	MIPI_CSI_RX_D0P	CSI signal	MIPI CSI signal differential pair
145	MIPI_CSI_RX_CLK1P	CSI signal	MIPI CSI signal differential pair
146	MIPI_CSI_RX_CLK1N	CSI signal	MIPI CSI signal differential pair
147	MIPI_CSI_RX_CLK0P	CSI signal	MIPI CSI signal differential pair
148	MIPI_CSI_RX_CLK0N	CSI signal	MIPI CSI signal differential pair
149	MIPI_DSI_TX1_D3N	DSI signal	MIPI DSI Signal Differential Pair
150	MIPI_DSI_TX1_D3P	DSI signal	MIPI DSI Signal Differential Pair

Core Board Pin Definition 4: Pin 151-200

Pin No.	Signal	Type	Description
151	MIPI_DSI_TX1_D2N	DSI signal	MIPI DSI Signal Differential Pair
152	MIPI_DSI_TX1_D2P	DSI signal	MIPI DSI Signal Differential Pair
153	MIPI_DSI_TX1_D1N	DSI signal	MIPI DSI Signal Differential Pair
154	MIPI_DSI_TX1_D1P	DSI signal	MIPI DSI Signal Differential Pair
155	MIPI_DSI_TX1_D0N	DSI signal	MIPI DSI Signal Differential Pair
156	MIPI_DSI_TX1_D0P	DSI signal	MIPI DSI Signal Differential Pair
157	MIPI_DSI_TX1_CLKP	DSI signal	MIPI DSI Signal Differential Pair
158	MIPI_DSI_TX1_CLKN	DSI signal	MIPI DSI Signal Differential Pair
159	MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
160	MIPI_DSI_TX0_CLKN/LVDS_TX0_CLKN	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
161	MIPI_DSI_TX0_D3N/LVDS_TX0_D3N	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
162	MIPI_DSI_TX0_D3P/LVDS_TX0_D3P	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
163	MIPI_DSI_TX0_D2N/LVDS_TX0_D2N	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
164	MIPI_DSI_TX0_D2P/LVDS_TX0_D2P	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
165	MIPI_DSI_TX0_D1N/LVDS_TX0_D1N	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
166	MIPI_DSI_TX0_D1P/LVDS_TX0_D1P	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
167	MIPI_DSI_TX0_D0N/LVDS_TX0_D0N	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
168	MIPI_DSI_TX0_D0P/LVDS_TX0_D0P	DSI or LVDS signal line	DSI or LVDS differential pair, program selected
169	HDMI_TX_HPDIN	HDMI headphone detection pin
170	HDMI_TXCLKN_PORT	HDMI signal cable	HDMI high speed signal differential pair
171	HDMI_TXCLKP_PORT	HDMI signal cable	HDMI high speed signal differential pair
172	HDMI_TX0N_PORT	HDMI signal cable	HDMI high speed signal differential pair
173	HDMI_TX0P_PORT	HDMI signal cable	HDMI high speed signal differential pair
174	HDMI_TX1N_PORT	HDMI signal cable	HDMI high speed signal differential pair
175	HDMI_TX1P_PORT	HDMI signal cable	HDMI high speed signal differential pair
176	HDMI_TX2N_PORT	HDMI signal cable	HDMI high speed signal differential pair
177	HDMI_TX2P_PORT	HDMI signal cable	HDMI high speed signal differential pair
178	PCIE20_REFCLKP	PCIE signal line	PCIE high-speed signal differential pair
179	PCIE20_REFCLKN	PCIE signal line	PCIE high-speed signal differential pair
180	PCIE20_RXP	PCIE signal line	PCIE high-speed signal differential pair
181	PCIE20_RXN	PCIE signal line	PCIE high-speed signal differential pair
182	PCIE20_TXN	PCIE signal line	PCIE high-speed signal differential pair
183	PCIE20_TXP	PCIE signal line	PCIE high-speed signal differential pair
184	USB3_HOST1_SSTXP	USB signal cable	USB High Speed ​​Signal Differential Pair
185	USB3_HOST1_SSTXN	USB signal cable	USB High Speed ​​Signal Differential Pair
186	USB3_HOST1_SSRXP	USB signal cable	USB High Speed ​​Signal Differential Pair
187	USB3_HOST1_SSRXN	USB signal cable	USB High Speed ​​Signal Differential Pair
188	USB3_HOST1_DP	USB signal cable	USB High Speed ​​Signal Differential Pair
189	USB3_HOST1_DM	USB signal cable	USB High Speed ​​Signal Differential Pair
190	USB_OTG0_DM	USB signal cable	USB High Speed ​​Signal Differential Pair
191	USB_OTG0_DP	USB signal cable	USB High Speed ​​Signal Differential Pair
192	USB_OTG0_VBUSDET	OTG detection pin	Used for OTG pin identification
193	USB_OTG0_ID	OTG ID pin	Used for HOST and DEVICE status judgment
194	GPIO0_B6	GPIO	PWM2_M1,I2C2_SDA_M0,SPI0_MOSI_M0
195	GPIO0_B7	GPIO	PWM0_M0
196	GPIO0_C6	GPIO	PWM7_IR,SPI0_CS0_M0
197	GPIO0_D1	GPIO	UART2_TX_M0, the default is the debug serial port
198	GPIO0_D0	GPIO	UART2_RX_M0, the default is the debug serial port
199	GPIO0_C7	GPIO	PWM0_M1,UART0_CTS
200	GPIO0_C5	GPIO	PWM6,SPI0_MISO_M0
