Dimensions and Structure

Core Board Appearance​

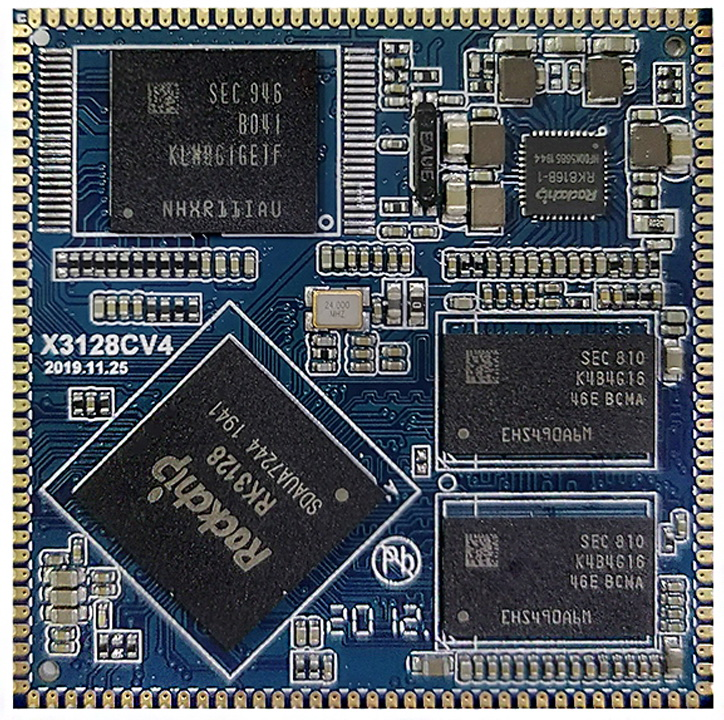

X3128CV4 core board front side

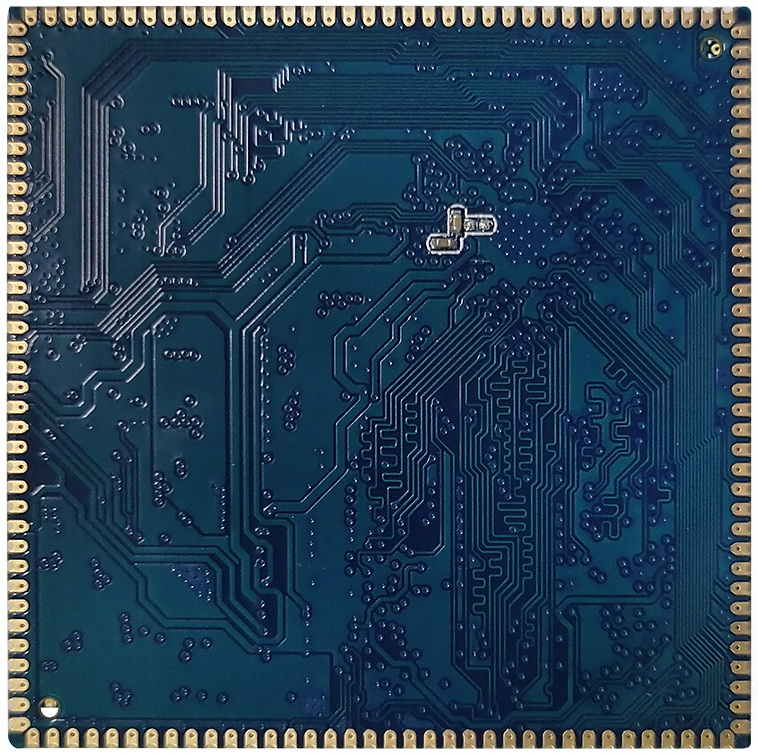

X3128CV4 core board back side

Core Board Mechanical Drawing​

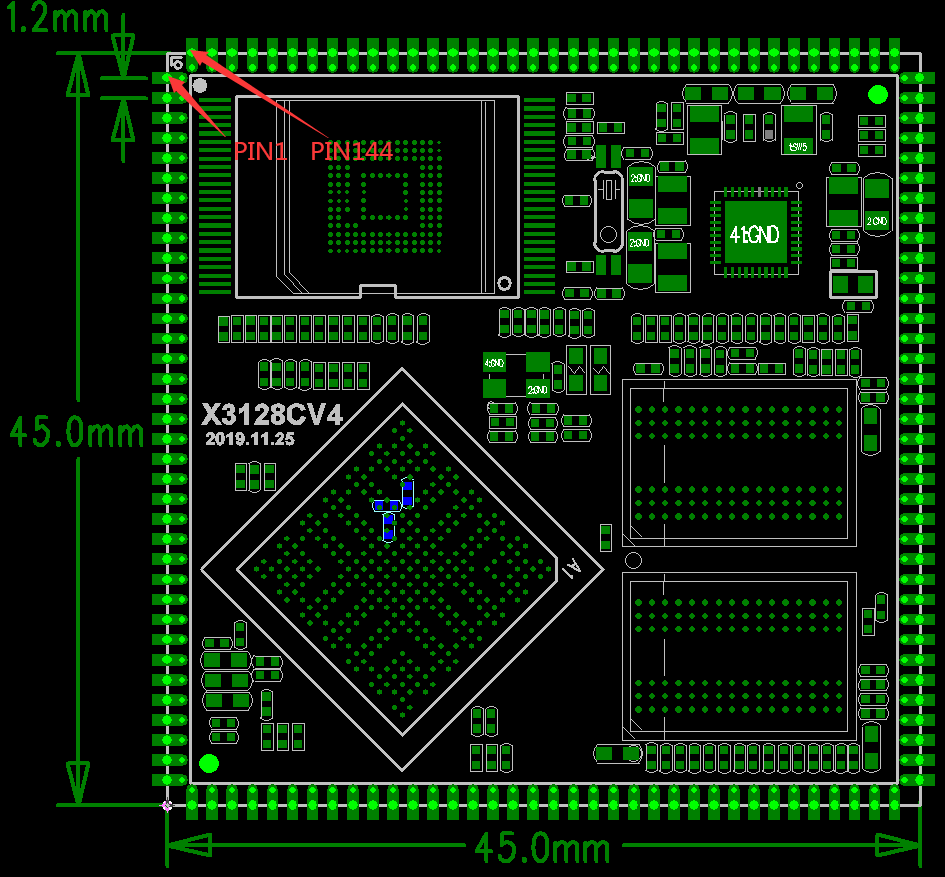

X3128CV4 core board mechanical dimensions

Mechanical Parameters​

PackageCastellated-hole module
Core Board Size45mm x 45mm x 3mm
Pin Pitch1.2mm
Pad Size1.8mm x 0.7mm
Pin Count144 pins
PCB Layers6 layers

Baseboard Appearance​

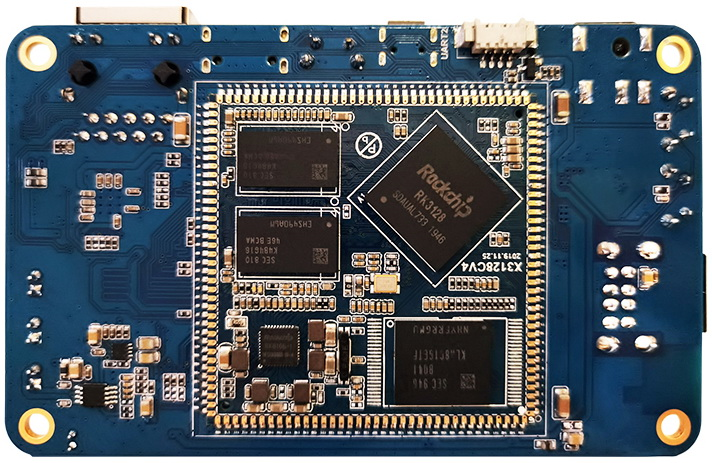

X3128BV3 baseboard appearance
