Android User Guide

Command Terminal​

Connect the serial cable to the debug UART. After Android boots, the serial terminal can be used to view Android shell output and system logs.

Audio and Video Playback​

Place MP3 or video files on the external SD card. The Music and Gallery applications can automatically detect supported files. Unsupported video formats can be played with a third-party player such as RockPlayer.

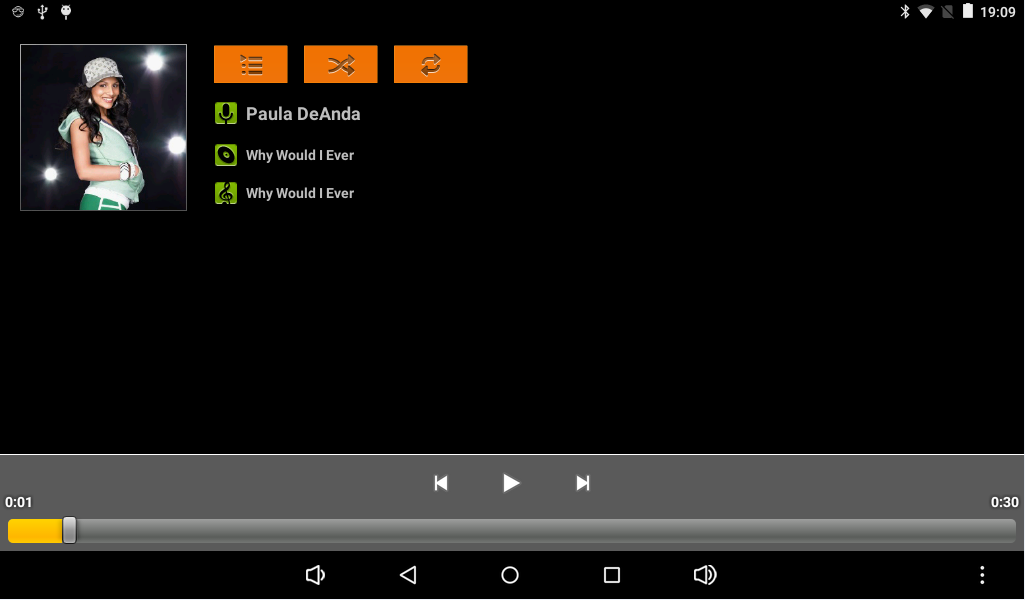

Music player

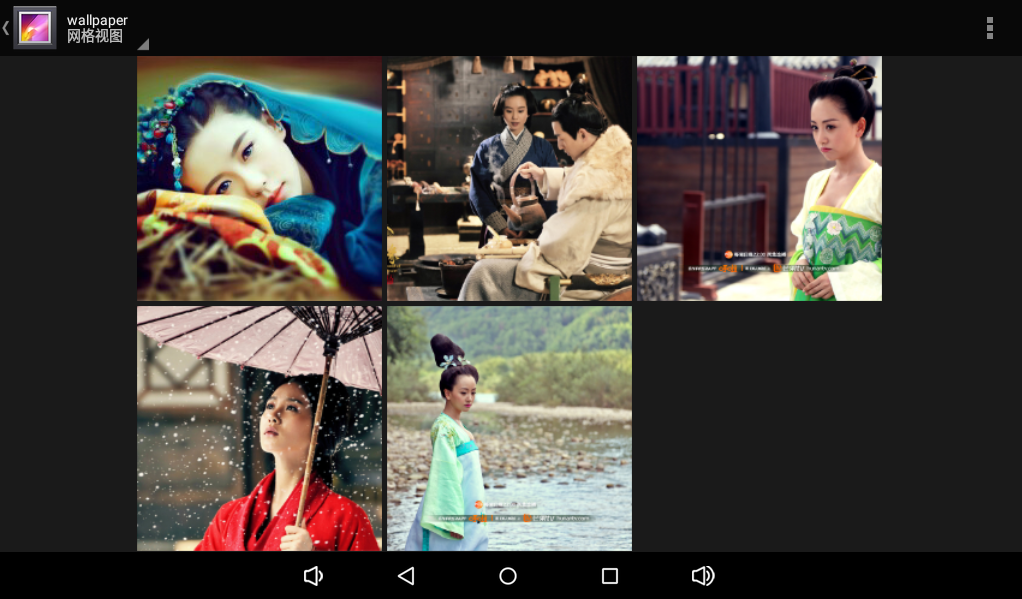

Video gallery

For videos supported by RK3128 hardware decoding, select hardware decoding mode. For formats such as RMVB or RM, select software decoding mode.

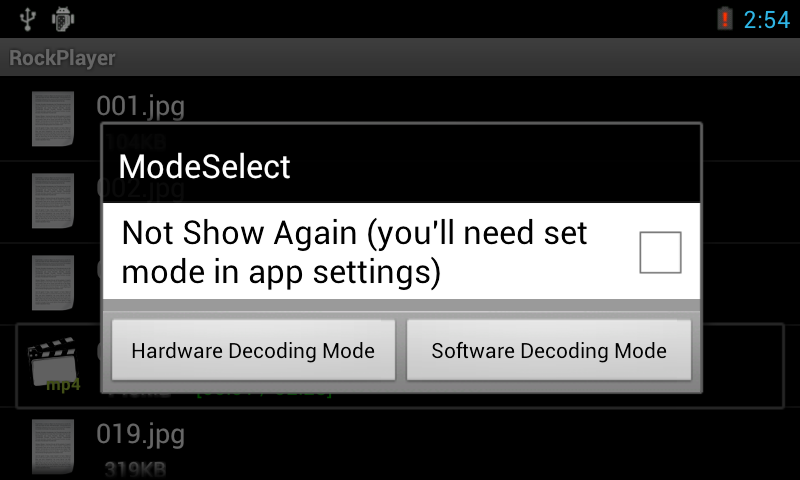

RockPlayer decoding mode

Wi-Fi​

The X3128 has an on-board Wi-Fi / BT combo module. Open Settings, enable Wi-Fi, select a wireless network, and enter the password to connect.

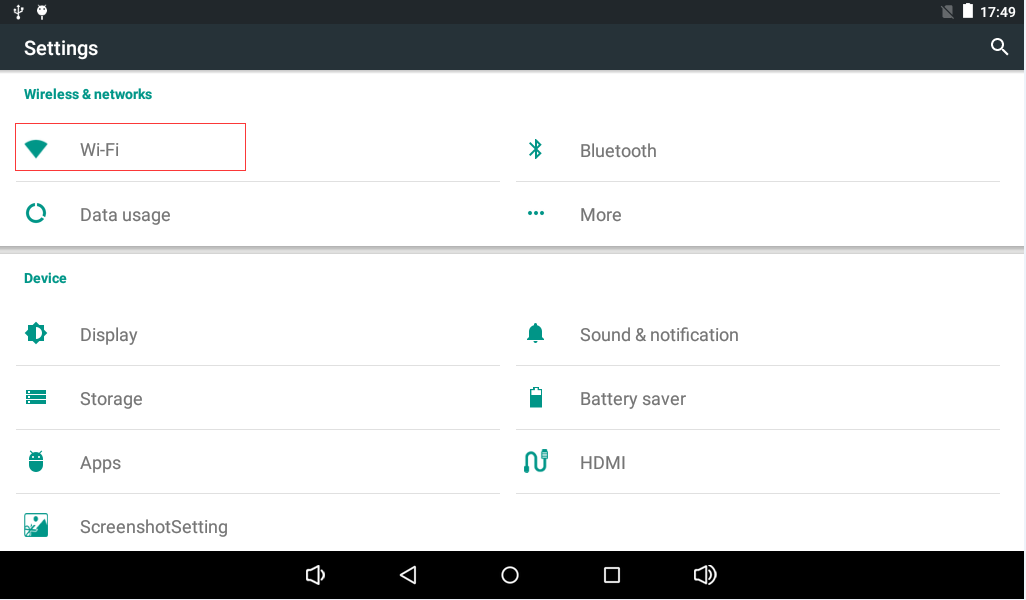

Wi-Fi settings entry

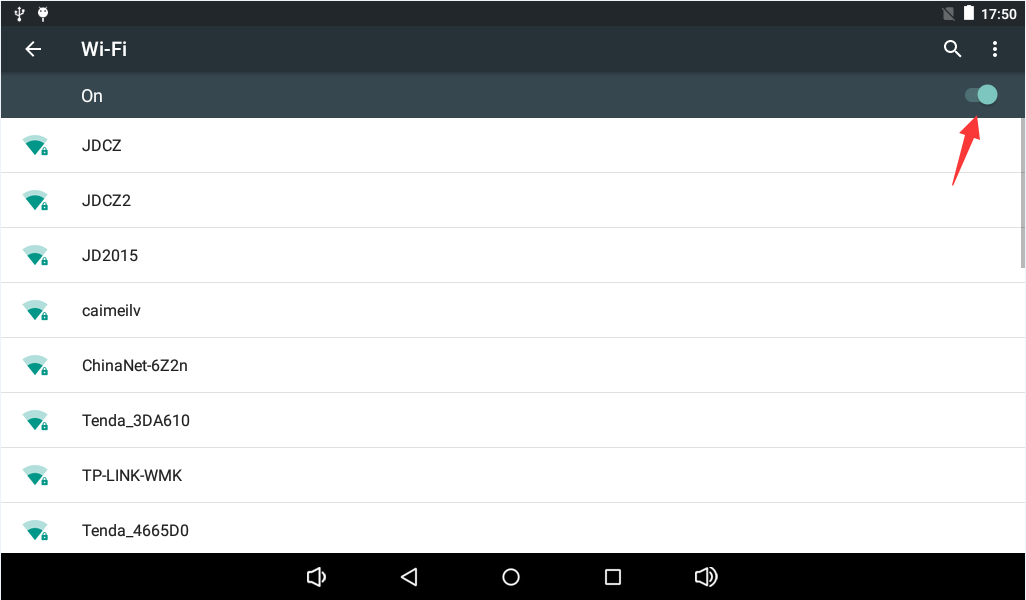

Wi-Fi switch

Bluetooth File Transfer and Bluetooth Speaker​

Open Bluetooth in Settings and search for devices. After pairing, files such as images can be shared, and a Bluetooth speaker can be used for audio playback.

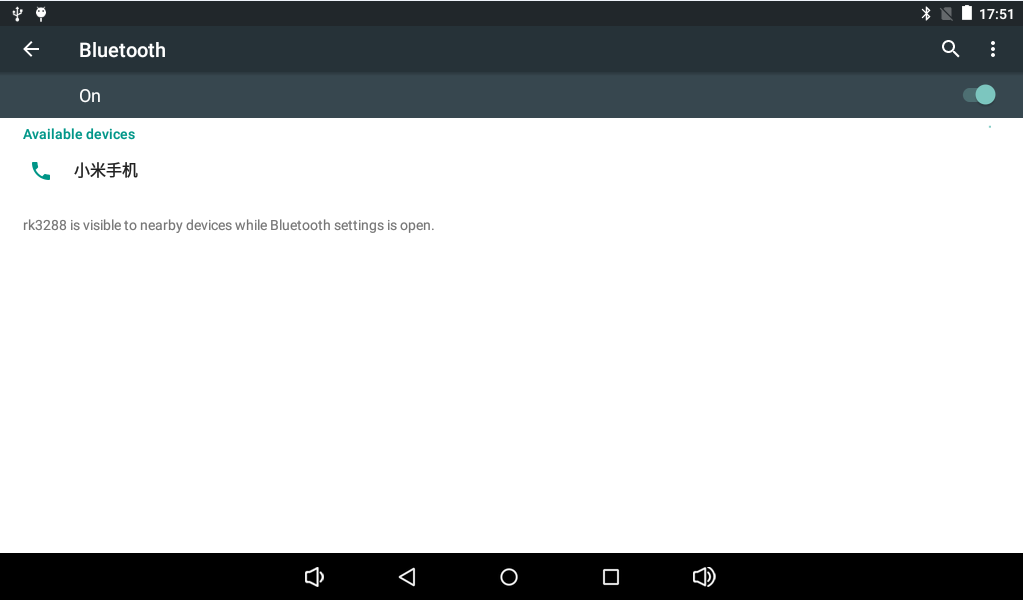

Bluetooth device search

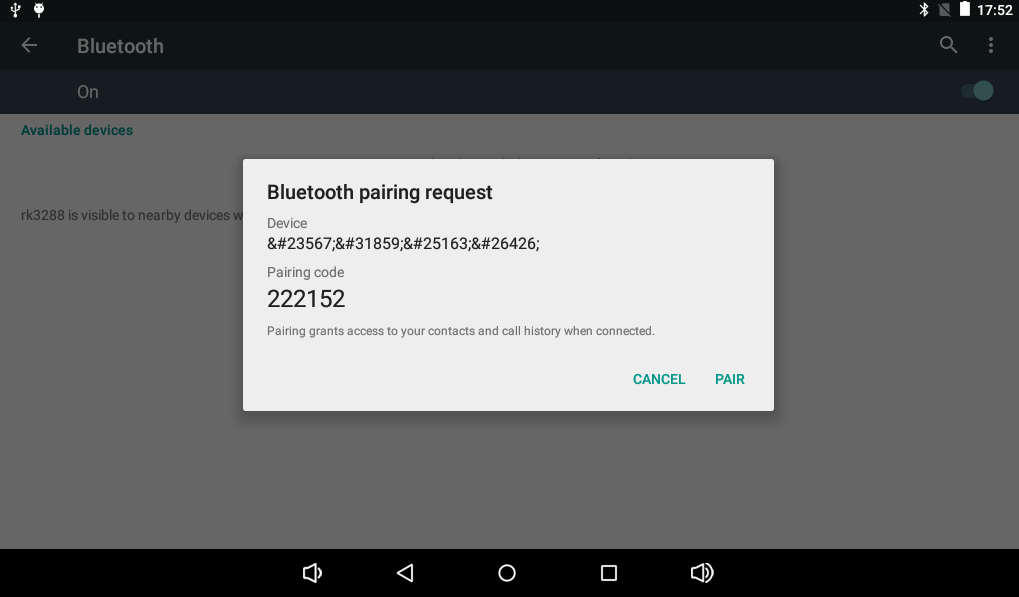

Bluetooth pairing request

USB Mouse and Keyboard​

Connect a USB mouse or wireless USB keyboard/mouse receiver to the USB HOST interface to operate the Android UI.

TF Card and USB Flash Drive​

The system automatically mounts the TF card after boot. A USB flash drive is mounted under /storage.

ls /storage

Screen Rotation​

The board integrates a G-sensor. The UI rotates when the board orientation changes. Some applications may not support auto rotation.

Camera​

Open the Android Camera application to enter preview mode. The default X3128 configuration supports a 0.3MP parallel camera GC0308.

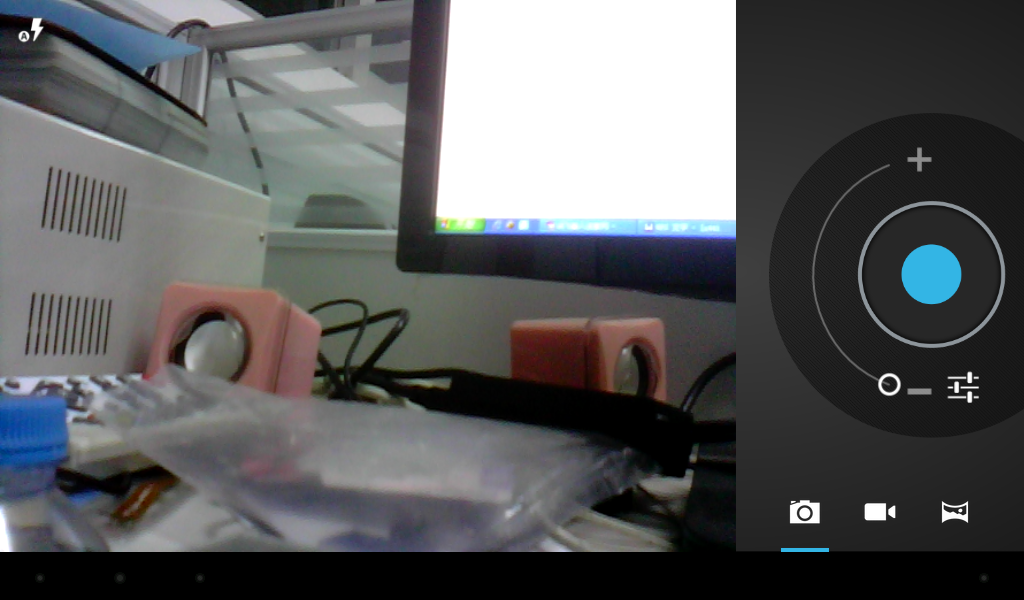

Camera preview

Wired Ethernet​

Connect an Ethernet cable to the board. After the link LEDs blink normally, the wired network can be used.

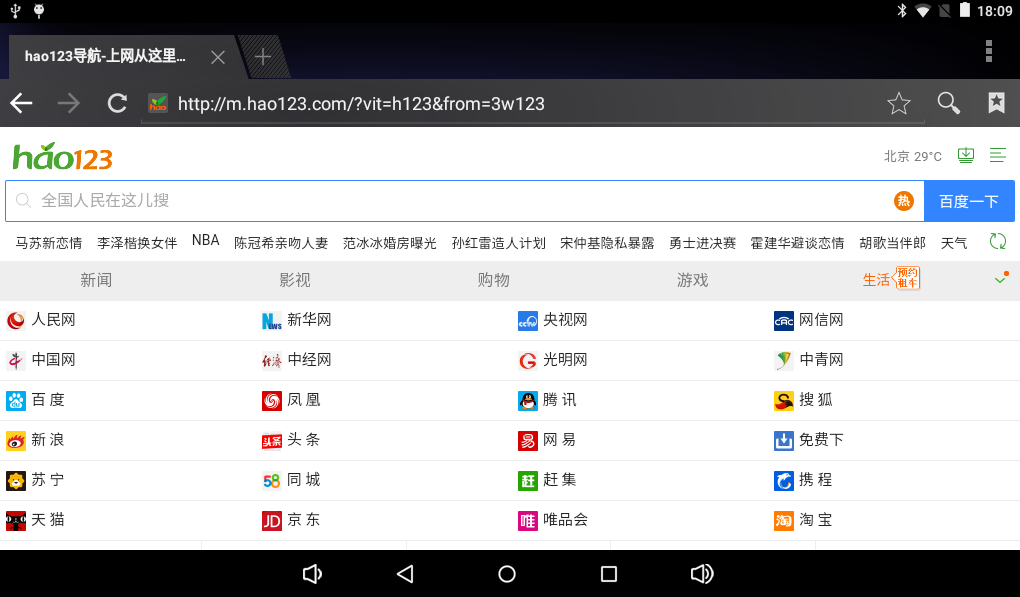

Wired network browsing

HDMI Display​

HDMI can output the LCD content to a TV or monitor, supporting 1080p and compatible with 720p, 576p, and 480p. On RK3128, HDMI display and LCD display cannot work normally at the same time.

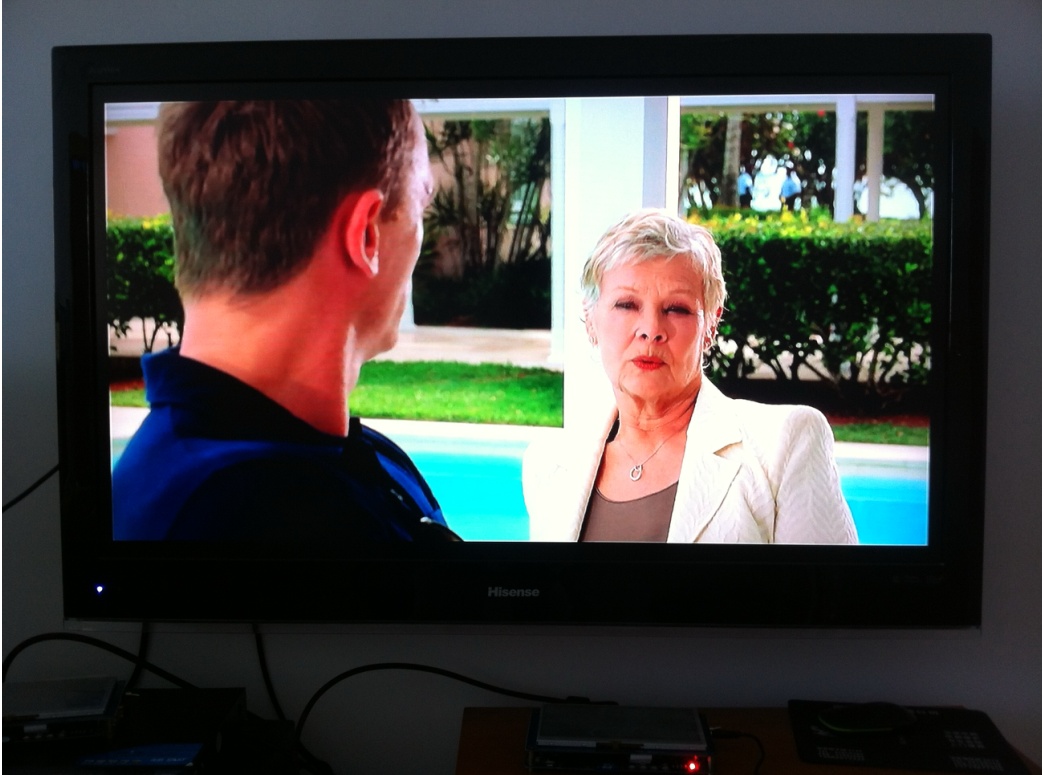

HDMI display

Power Off and Suspend / Resume​

After a 12V power adapter is connected, the board powers on automatically. Long-press the power key to open the shutdown dialog. Short-press the power key to turn off the screen and enter suspend; short-press again to wake up.

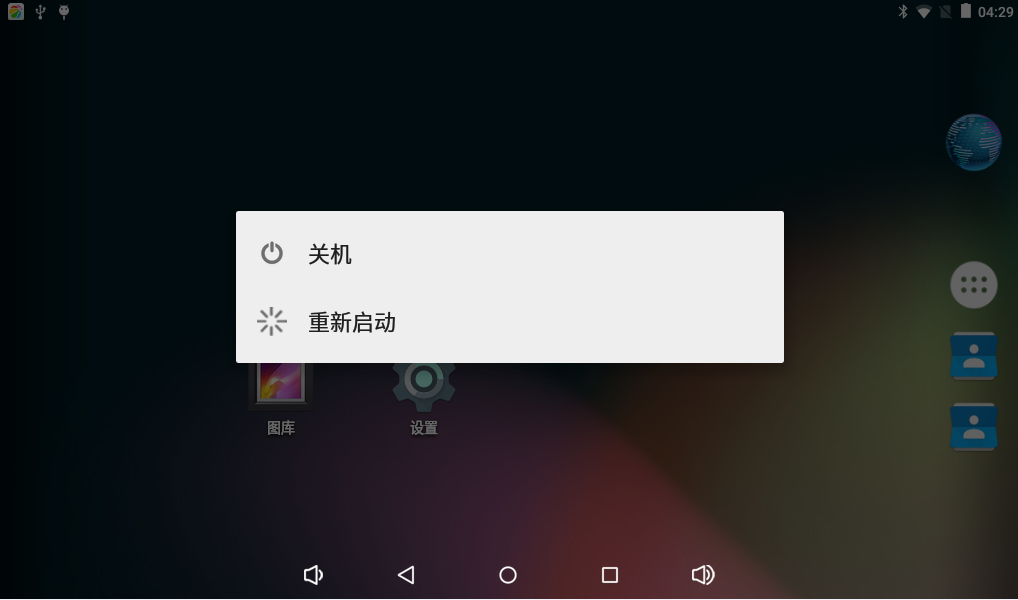

Shutdown dialog
