The X30 development board is based on the Rockchip PX30 platform and uses the X30CV1 or X30CV2 core board. It consists of a stamp-hole core board, a carrier board, and an LCD panel. It can be used in tablets, vehicle systems, learning devices, POS terminals, game consoles, industrial surveillance, advertising players, PDAs, teaching platforms, and multimedia terminals.

PX30 is a quad-core Cortex-A35 application processor for industrial applications. It supports RGB/LVDS/MIPI-DSI display output, MIPI CSI and DVP sensor input, 100M RMII, SDIO3.0, USB2.0 HOST/OTG, I2C, UART, SPI, PWM, and other common embedded interfaces.

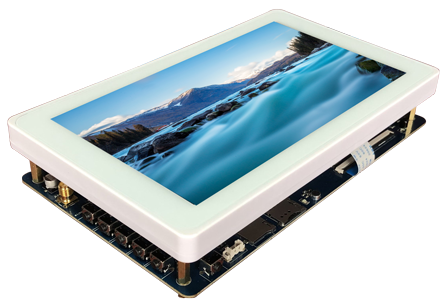

X30 development board appearance

PX30 Specification​

ItemParameter
CPUQuad-core Cortex-A35
GPUMali-G31 GPU, OpenGL ES 3.2, Vulkan 1.0, OpenCL 2.0
2DIntegrated high-performance 2D acceleration hardware
Video decodeMulti-format 1080p 60fps decode: H.265, H.264, VC-1, MPEG-1/2/4, VP8
Video encode1080p encode, H.264 and VP8
DisplayRGB / LVDS / MIPI-DSI, up to 1920 x 1080; dual-display output supported
Memory32-bit DDR4-1600 / DDR3-1600 / DDR3L-1600 / LPDDR3-1600 / LPDDR2-1066
StorageMLC NAND, eMMC 4.51, serial NOR flash
CameraMIPI CSI and DVP sensor interface, integrated 8MP ISP
Audio1x 8ch I2S/TDM, 1x 8ch PDM, 2x 2ch I2S/PCM
Ethernet100M RMII
InterfacesSDIO3.0, USB2.0 HOST/OTG, 4 I2C, 6 UART, 2 SPI, 8 PWM

Feature Highlights​

  • Quad-core ARM Cortex-A35 CPU.
  • 1.3GHz x 4.
  • 1GB/2GB DDR3/DDR4 memory, standard 1GB DDR3.
  • 4GB/8GB/16GB/32GB/64GB eMMC options, standard 8GB eMMC.
  • 3 USB USB HOST2.0 ports and 1 OTG port.
  • 3 TTL UARTs, with UART2 used for debugging.
  • TF-card interface; TF D0/D1 are multiplexed with UART0.
  • Reset key, software power key, and four independent keys.
  • External speaker, MIC input, and headphone output.
  • Stepless backlight control and multi-touch capacitive panel support.
  • On-board AP6212 Wi-Fi/BT.
  • G-sensor support.
  • MPEG-4, H.264, H.265/HEVC, VC-1, and VP8 video decode support.
  • H.264 video encode support.
  • High-performance 2D/3D graphics acceleration.
  • RTC time retention.
  • 100M wired Ethernet.
  • CSI camera interface.
  • External USB 3G module and PCIe module support.
  • USB mouse, keyboard, and integrated IR receiver support.

Core Board Features​

  • X30CV1 core board size is 45mm x 45mm, with 144 pins exported.
  • X30CV1 uses DDR3, standard 1GB and customizable to 2GB; X30CV2 uses LPDDR3 for larger-memory cost-sensitive designs.
  • Except for the memory device, X30CV1 and X30CV2 are pin-, size-, and electrical-connection compatible.
  • RK809 PMU supports power management, dynamic frequency scaling, suspend, and wake-up.
  • Android 8.1, Linux, Debian 9, and Ubuntu are supported.
  • 100M Ethernet is supported.
  • Reliability testing includes high/low temperature, repeated reboot, Android stability test, Antutu test, and long-duration burn-in.

System and Interface Parameters​

ItemParameter
CPUPX30
ClockQuad-core Cortex-A35, 1.3GHz
MemoryX30CV1 uses DDR3; X30CV2 uses LPDDR3
Storage4GB/8GB/16GB eMMC optional, standard 8GB
PMICRK809 / RT809 as listed in the manual, supports dynamic frequency scaling
LCDMIPI, LVDS, and RGB interfaces
TouchCapacitive touch; USB or UART resistive touch can be extended
AudioAC97 / I2S interface, recording and playback
SD1 SDIO output channel
eMMCOn-board eMMC; pins are not exported separately
Ethernet100M Ethernet
USB USB HOST2.03 USB HOST2.0 ports
UART6 UARTs, flow-control UART supported
PWM8 PWM outputs
I2C4 I2C outputs
SPI2 SPI outputs
ADC3 ADC outputs
Camera1 CSI input

Electrical Characteristics​

ItemParameter
5V input5V / 1A
RTC input5V / 30uA
Output voltages1.8V, 3V, 3.3V, 5V
Operating temperature-20°C to 80°C
Storage temperature-10°C to 50°C

Software Resources​

The X30 development board supports Android 8.1, QT5.9, Debian 9, and Ubuntu 16.04. The driver support matrix from the hardware manual is kept below:

system / driverlinux4.4+ / Android 8.1linux4.4+ / QT5.9linux4.4+ / debian9linux4.4+ / ubuntu16.04
Four-way programmable LED lightsSupportedSupportedComing soonComing soon
7-inch MIPI screen (1024*600)SupportedSupportedSupportedSupported
Backlight driverSupportedSupportedSupportedSupported
PMIC driver (RK808)SupportedSupportedSupportedSupported
capacitive touchSupportedSupportedSupportedSupported
eMMC driverSupportedSupportedSupportedSupported
SD card driverSupportedSupportedSupportedSupported
Independent buttonsSupportedSupportedSupportedSupported
ADC driverSupportedSupportedSupportedSupported
GsensorSupportedNot requiredNot requiredNot required
buzzer driverSupportedSupportedSupportedSupported
Infrared remote controlSupportedSupportedSupportedSupported
Turn on and offSupportedSupportedSupportedSupported
wake up from sleepSupportedSupportedComing soonComing soon
Three-way USB USB HOST2.0 driverSupportedSupportedSupportedSupported
All the way OTG driverSupportedSupportedSupportedSupported
Audio (RK809)SupportedSupportedSupportedSupported
Recording(RK809)SupportedNot requiredComing soonComing soon
SDIOWIFI/BTSupportedSupportedComing soonComing soon
CSI camera driverSupportedComing soonComing soonComing soon
USB port camera driverSupportedSupportedSupportedSupported
serial portSupportedSupportedSupportedSupported
4G module (PCIEinterface)SupportedNot requiredNot requiredNot required
GPS moduleSupportedSupportedSupportedSupported
100M EthernetSupportedSupportedSupportedSupported
USB mouse keyboardSupportedSupportedSupportedSupported
ubootSupportedSupportedSupportedSupported
SD card offline update imageSupportedSupportedSupportedSupported
