Product Introduction

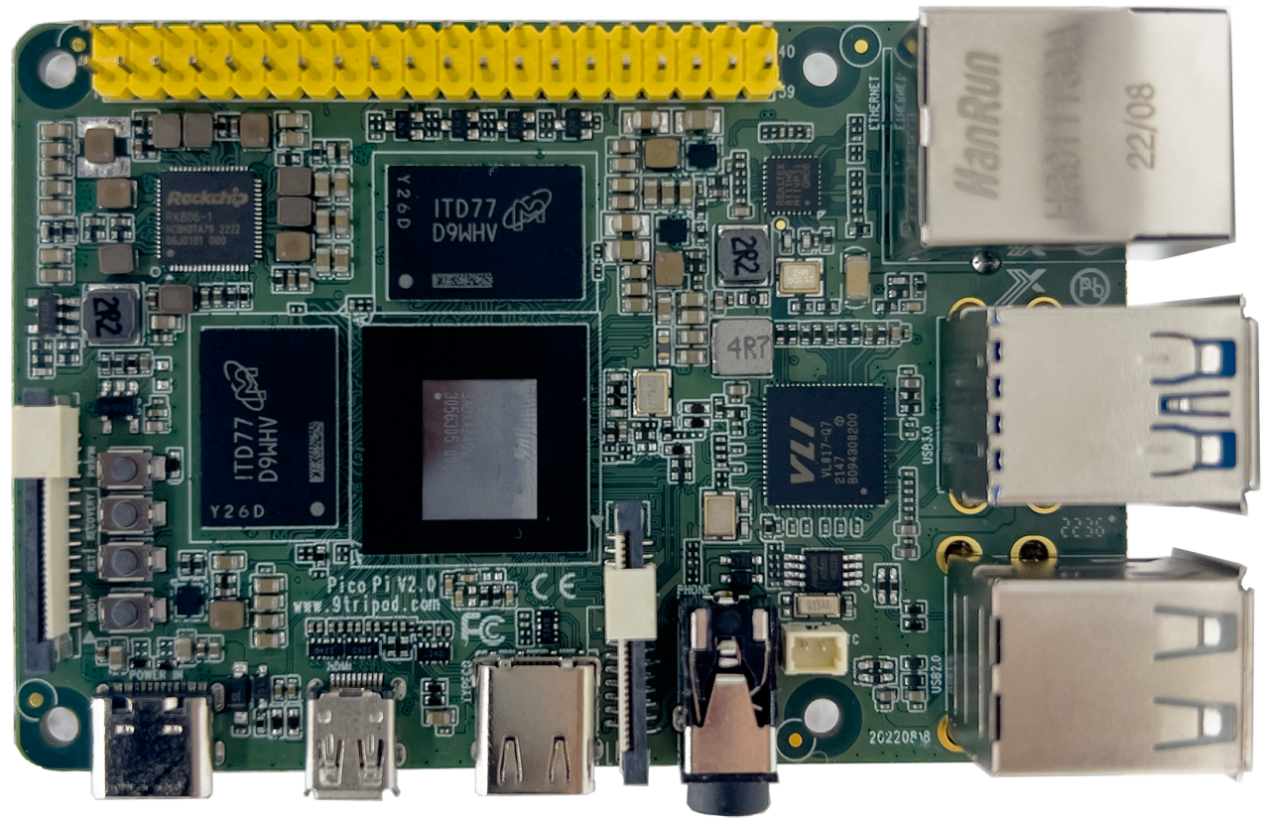

Pico PC RK3588S is a Raspberry Pi form-factor single-board computer based on Rockchip RK3588S. The board size is 85mm x 56mm. It provides Android 12, Linux, Ubuntu, Debian, and Buildroot resources for edge computing, multimedia, AI inference, display control, networking, industrial control, and general embedded development.
Feature Highlights
- Quad-core ARM Cortex-A76 + quad-core Cortex-A55, up to 2.4GHz.
- Standard 4GB or 8GB LPDDR4 / LPDDR4X; other configurations can be ordered.
- Pluggable 16GB / 32GB eMMC.
- Two USB HOST 2.0 ports, two USB HOST 3.0 ports, one full-feature Type-C port, and one Type-C power input.
- Two 3.3V TTL UART ports, one of which is the default debug UART.
- One TF-card interface, one reset key, one power key, and one forced-upgrade key.
- One Micro HDMI output, one DSI display connector, and one CSI camera input.
- Headphone output and capacitive touch support.
- On-board high-speed dual-band Wi-Fi / Bluetooth module.
- RTC time retention, Gigabit Ethernet, and multiple GPIO expansion pins.
Specification Summary
| Item | Parameter |
|---|---|
| SoC | Rockchip RK3588S |
| CPU | 4 x Cortex-A76 + 4 x Cortex-A55, 8 nm, up to 2.4GHz |
| GPU | ARM Mali-G610 MP4, OpenGL ES 3.2 / OpenCL 2.2 / Vulkan 1.1 |
| NPU | Up to 6 TOPS, INT4 / INT8 / INT16 mixed precision |
| Memory | 4GB / 8GB / 16GB 64-bit LPDDR4 / LPDDR4X, up to 32GB |
| Storage | 16GB / 32GB eMMC |
| Display | HDMI 2.1, MIPI-DSI |
| USB | 2 x USB 3.0, 2 x USB 2.0, 1 x Type-C |
| Systems | Android 12.0, Ubuntu, Debian 11, Buildroot |
| Dimensions | 85mm x 56mm, Raspberry Pi form factor |
| Power | Standby about 0.375W, typical about 1W, maximum about 9W |
Version Information
| Version | Date | Author | Description |
|---|---|---|---|
| Rev.01 | 2022-10-8 | lqm | Initial version |
