Product Introduction

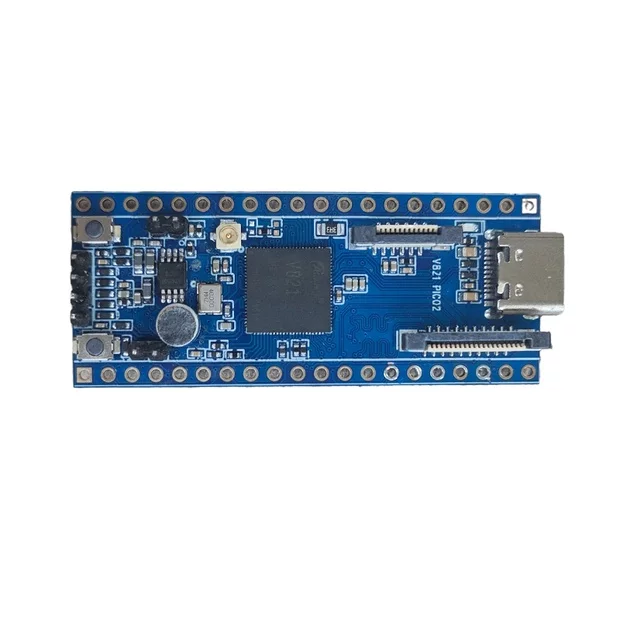

PICO2 is a compact smart-vision development board based on the Allwinner V821 processor family. It targets battery doorbells, smart locks, access control terminals, network cameras, and lightweight AI vision products.
Processing and Multimedia
- RISC-V application core up to 1.2 GHz.
- RISC-V auxiliary core up to 600 MHz for RTOS and AMP workloads.
- Integrated 16-bit DDR2, up to approximately 533 MHz.
- 128 MB onboard SPI NOR Flash.
- Smart video engine supporting up to 2M@25fps H.265 encoding and 2M@60fps JPEG processing.
- Integrated ISP with 2D/3D noise reduction, HDR, and edge enhancement.
- DVP and 2-lane MIPI CSI camera input.
- Serial RGB, MCU, and DBI display output.
Main Specifications
| Item | Value |
|---|---|
| Processor | Allwinner V821 family |
| CPU frequency | Up to 1.2 GHz |
| Memory | Integrated DDR2, up to about 533 MHz |
| Storage | 128 MB SPI NOR Flash |

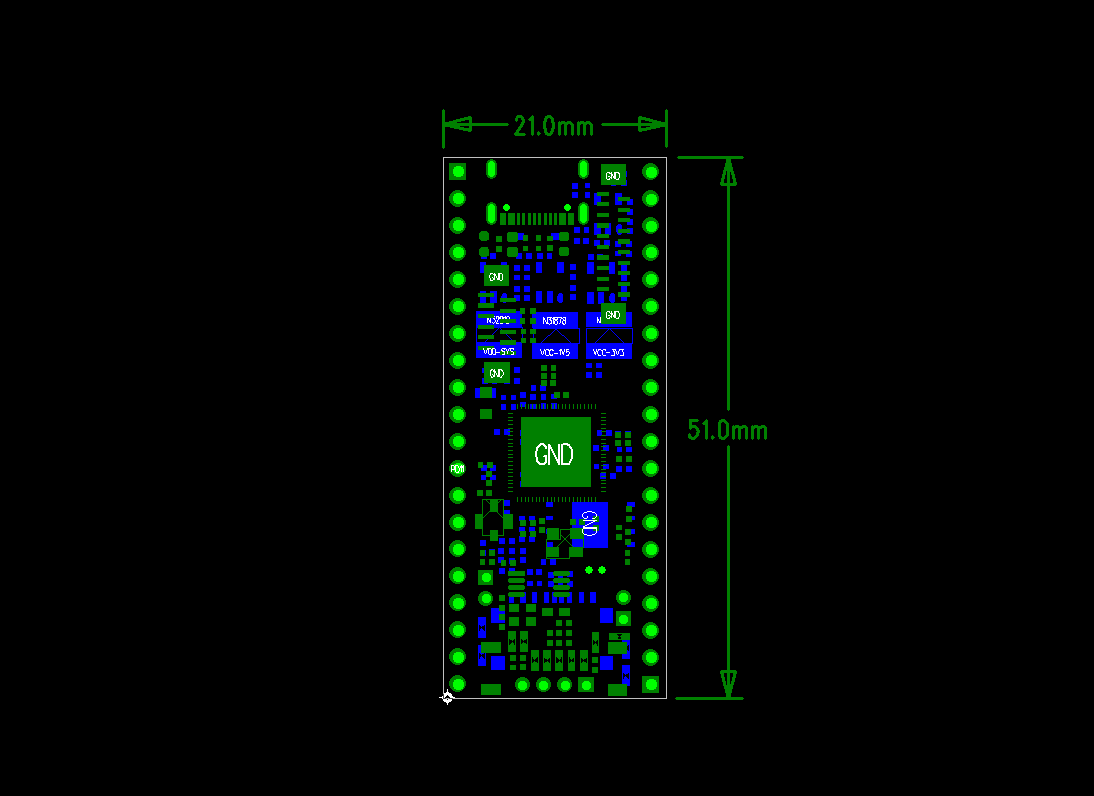

| Dimensions | 21 mm × 51 mm × 1.6 mm |
| Operating temperature | 0 to 70 °C |
| Power | USB Type-C, 5 V / 3 A |
| Operating system | Tina Linux |
