Product Introduction
Overview
IBOX3576 is an integrated mainboard based on the Rockchip RK3576 processor. It is developed and produced by Shenzhen Jiuding Chuangzhan Technology Co., Ltd.
RK3576 is a low-power and high-performance general-purpose SoC processor from Rockchip. It is suitable for ARM-based PCs, edge computing devices, personal mobile Internet devices, and other digital multimedia applications. The processor integrates CPU, GPU, MPU, NPU, VPU, and rich peripheral interfaces for complex AIoT scenarios.

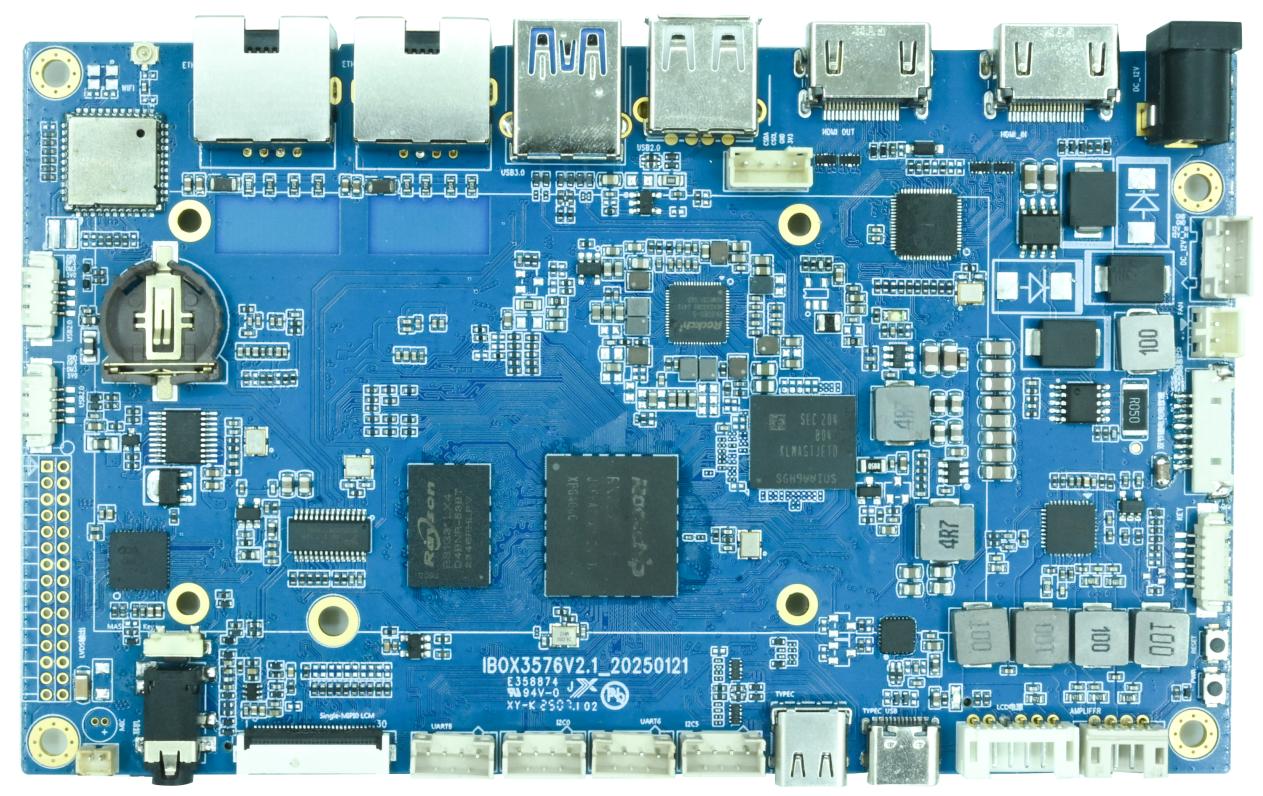

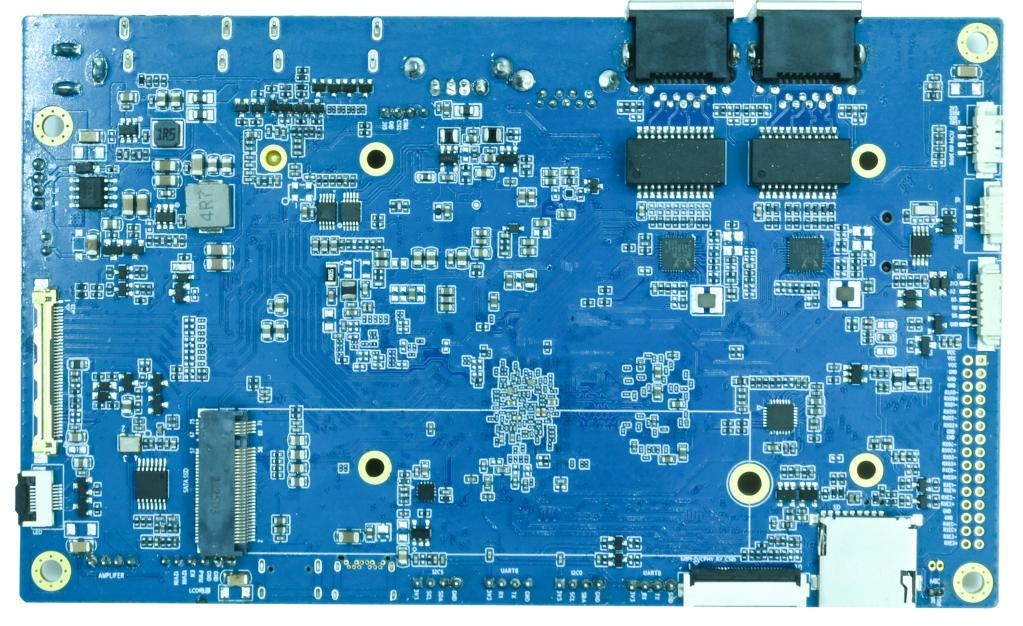

Product Appearance
Specifications
| Item | Description |
|---|---|
| CPU | RK3576(QuadA72+QuadA53) |
| Main frequency | 1.8GHz |
| RAM | 2GB or 4GB or 8GB |
| ROM | 4GB or 8GB or 16GB or 32GB or 64GB |
| PowerIC | Using RK806-S, Supported dynamic FM |
| Item | Description |
|---|---|
| Power | DC input, 12V/3A |
| LCD interface | 1 channel MIPI-DSI/LVDS multiplexing, 1 channel EDP/HDMI multiplexing |
| Touch interface | Capacitive touch, I2C interface |
| Camera interface | 1 MIPI-CSI input |
| SD card interface | 1 SDIO output channel |
| emmc interface | Onboard emmc interface, no pins are lead out separately |
| USB interface | 3 USB2.0, 1 USB3.0, 1 TYPE-C |
| HDMI interface | 1 channel HDMI2.0TX, 1 channel HDMIOUT |
| Ethernet Interface | Supported2-way Gigabit Ethernet Interface |
| UART interface | 2 way |
| I2C interface | 2 way |
| Audio Interface | 1 MIC, 1 headphone output, two-channel speakers |
| PCIE interface | 1-way PCIE2.0 |
| Item | Description |
|---|---|
| Operating System | Android14 |
| Low-level Drivers |
