Hardware Resources

This page summarizes the interface locations and hardware resources of the ibox3568 mainboard. For connector usage notes, see Interface Details.

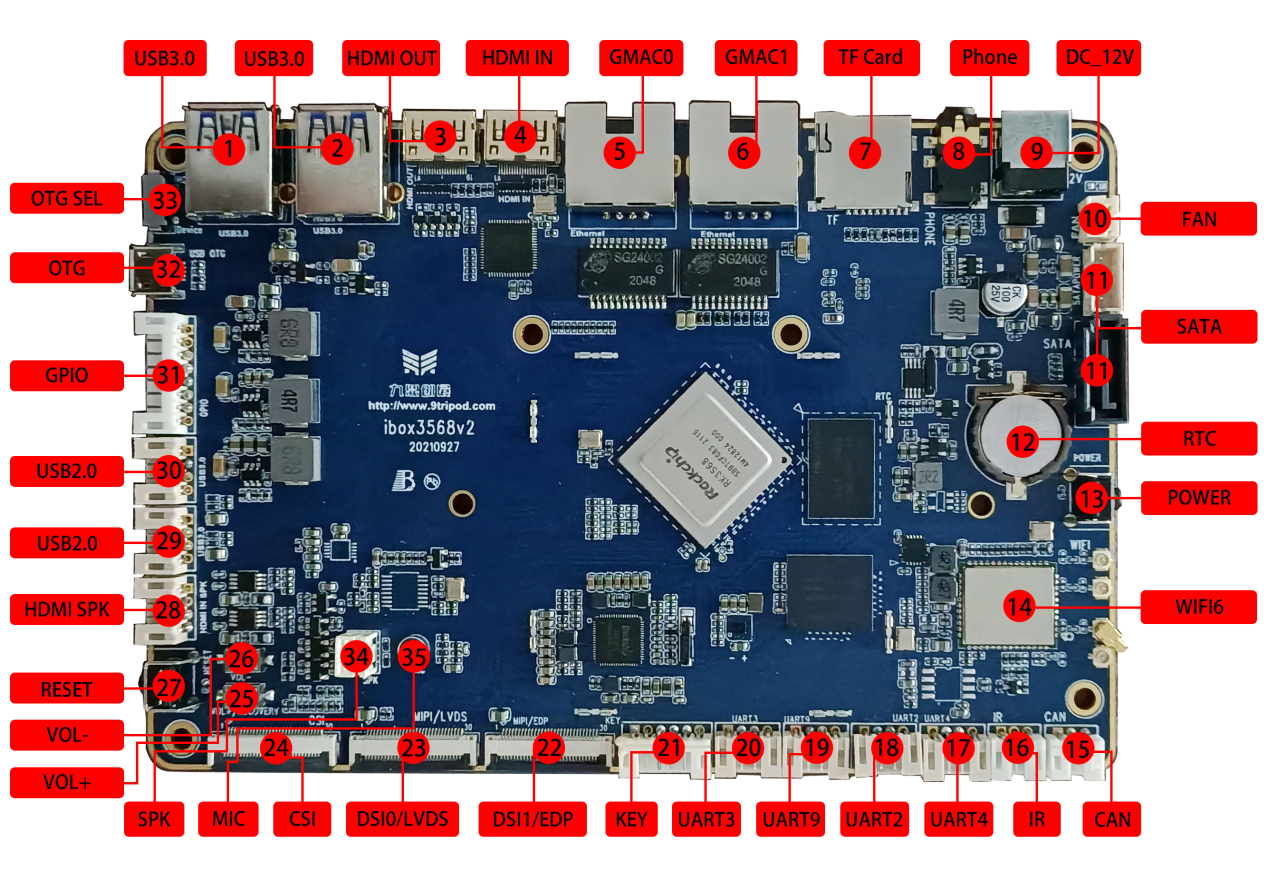

ibox3568 mainboard interface map

Hardware Interface List​

No.NameDescription
【1】USB 3.0USB 3.0 connector; compatible USB 2.0 pins are shared with OTG
【2】USB 3.0USB HOST 3.0 connector
【3】HDMI OUTHDMI output connector
【4】HDMI INHDMI input connector
【5】GMAC0Gigabit Ethernet port 0
【6】GMAC1Gigabit Ethernet port 1
【7】TF cardTF-card socket
【8】Headphone holderHeadphone output
【9】DC socket12V DC power input
【10】Cooling fan power holder12V fan power connector
【11】SATA interfaceSATA signal and power connector
【12】RTCRTC backup coin-cell battery
【13】Independent keysPWRKEY
【14】Wi-Fi/BTAP6375S Wi-Fi 6 / BT combo module
【15】CANCAN bus connector
【16】Infrared receiver interfaceCan connect external HS0038 integrated IR receiver
【17】UART4UART4, TTL-level interface
【18】UART2UART2, TTL-level interface, default debug UART
【19】UART9UART9, TTL-level interface
【20】UART3UART3, TTL-level interface
【21】KEYKey electrical signal connector for external keys
【22】display interfaceDSI or EDP interface
【23】display interfaceDSI or LVDS interface
【24】MIPI CSIMIPI Camera connector
【25】Independent keysMapped to volume up
【26】Independent keysMapped to volume down
【27】Independent keysRESET
【28】HDMI speaker interfaceAudio output for HDMI input source
【29】HOST 2.0USB HOST 2.0 connector
【30】HOST 2.0USB HOST 2.0 connector
【31】GPIOGPIO expansion connector
【32】OTGOTG download connector, shared with one USB 3.0 port
【33】USB toggle switchUpper position: Host; lower position: Device
【34】Speaker interfaceExternal dual-channel speaker
【35】MicrophoneMicrophone recording input
【36】PCIe interfacePCIe bus connector for PCIe device expansion, such as Wi-Fi 6, SATA, UART, and Ethernet. Note: the PCIe connector is on the back side and is not marked in the interface map.
