This page summarizes the i6818 hardware interface locations and functions. See Pin Definition for complete core-board and expansion connector pins, and Interface Details for usage notes.

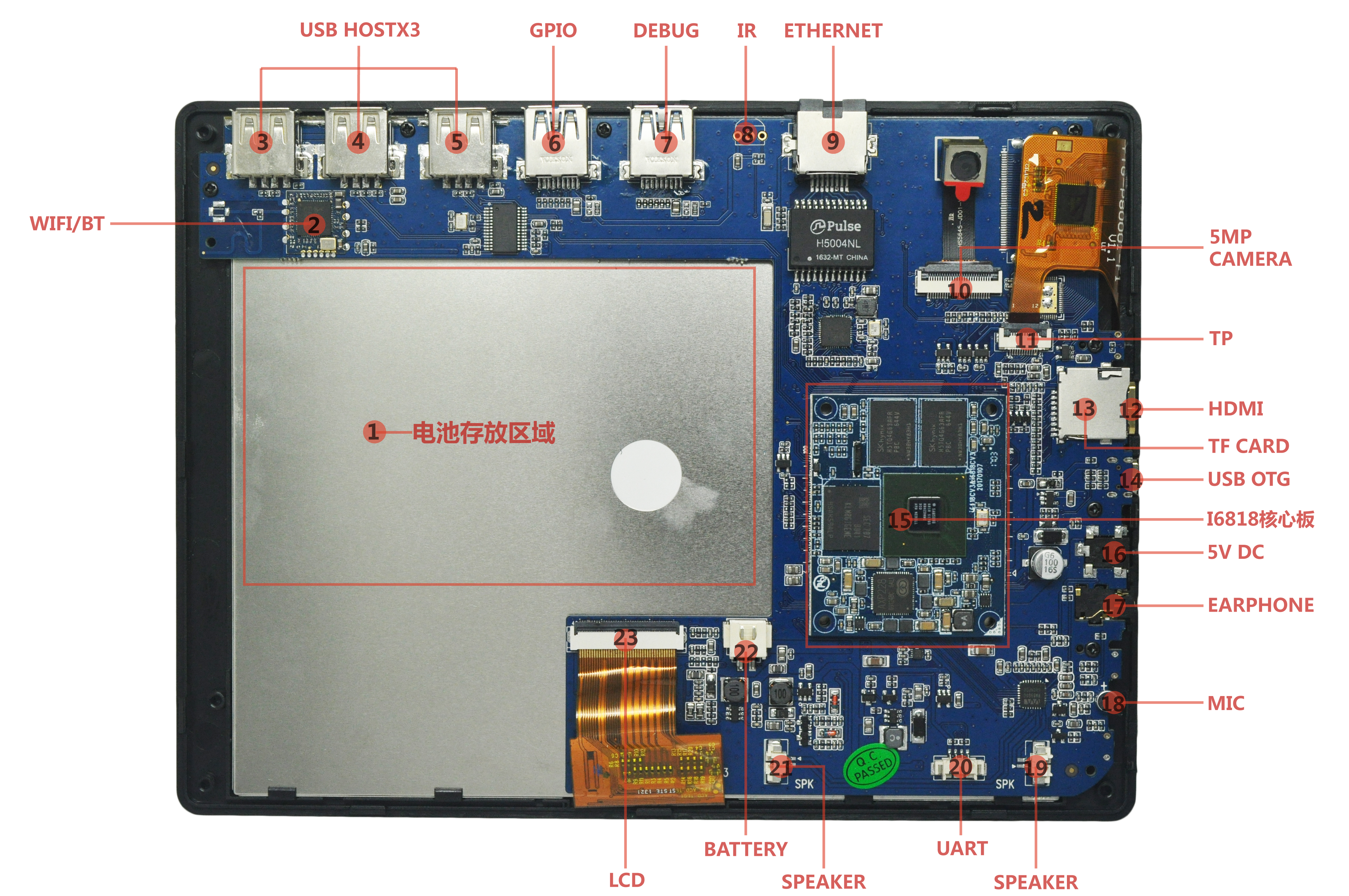

i6818 interface map

Hardware Interface List​

No.NameDescription
【1】Battery areaArea reserved for lithium battery after final assembly
【2】Wi-Fi / BTRT8723 Wi-Fi / Bluetooth module
【3】USB HOST 2.0USB HOST 2.0 port
【4】USB HOST 2.0USB HOST 2.0 port
【5】USB HOST 2.0USB HOST 2.0 port
【6】GPIO expansion portGPIO expanded through USB 3.0 style connector
【7】GPIO expansion portGPIO expanded through USB 3.0 style connector; debug UART is routed here
【8】IR receiverIR receiver interface, unpopulated by default
【9】Gigabit Ethernet portWired Ethernet interface
【10】Camera5MP MIPI camera
【11】Touchscreen connectorCapacitive touchscreen connector
【12】HDMI portmini HDMI port
【13】TF-card slotTF-card connector
【14】OTG connectorFor flashing; connect the PC to the OTG port
【15】Core boardBoard-to-board core board; supports i4418cv3 and i6818cv3
【16】Power connector5V small DC jack
【17】Headphone jackHeadphone output
【18】MICHeadset microphone input
【19】SPEAKERSpeaker output connector
【20】UARTDebug UART, TTL level by default
【21】SPEAKERSpeaker output connector
【22】BATTERYSingle-cell lithium battery connector
【23】LCDLCD connector

Top Interfaces​

i6818 top interfaces

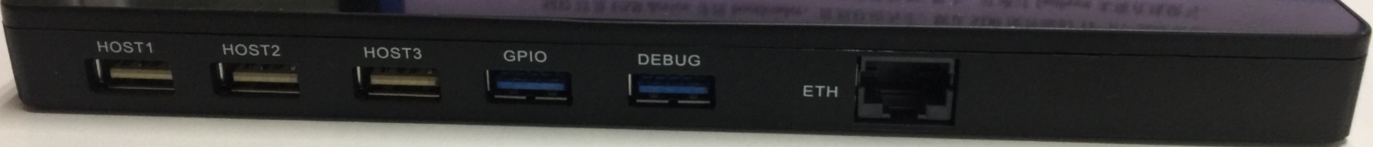

From left to right, the top side provides three HOST 2.0 connectors, two USB-3.0-shaped GPIO expansion connectors, and an Ethernet connector. HOST 2.0 is used for USB mouse, keyboard, USB disk, and other USB devices. The USB-3.0-shaped connectors are not USB 3.0 data ports; they expand GPIO and can route UART, I2C, GPIO, PWM, and other signals. The DEBUG port can connect to a serial debug adapter. Ethernet supports Gigabit networking.

Side Interfaces​

i6818 side interfaces

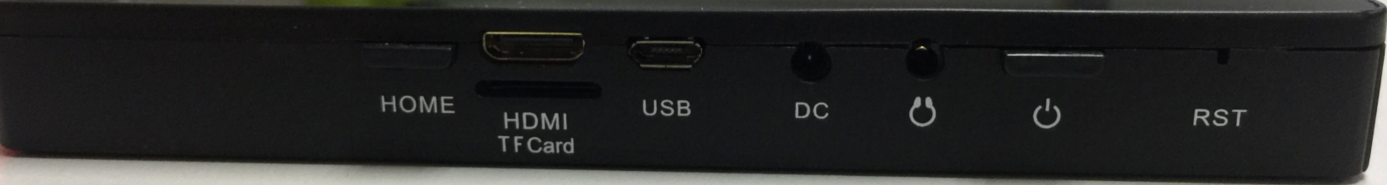

The side provides HOME and power keys, HDMI, TF card, USB OTG, 5V DC power input, headphone jack, and reset hole.
