Dimensions and Specifications

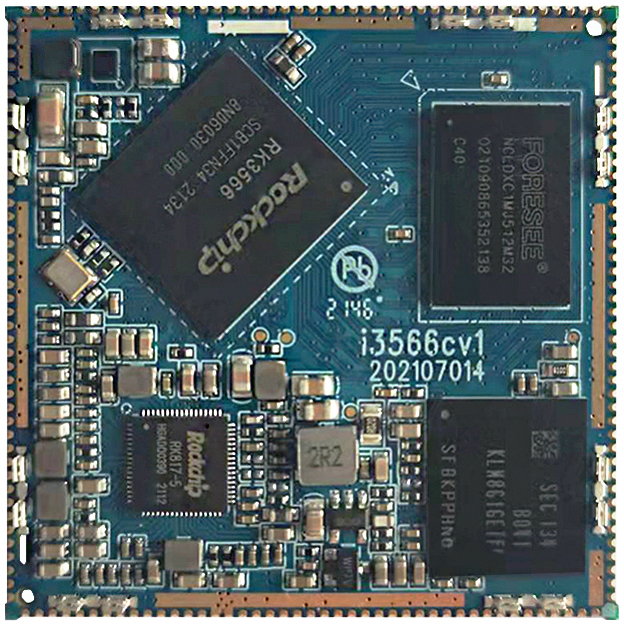

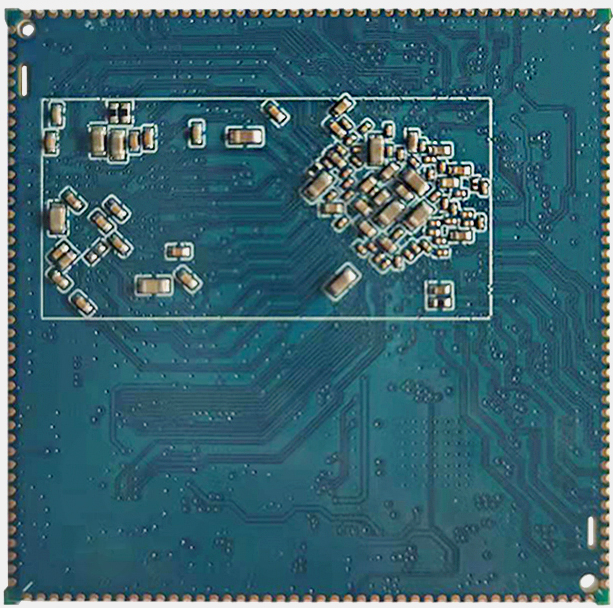

Core-board Appearance
Core-board Layout
Mechanical Parameters
| Appearance | Stamp-hole package |
|---|
| Core-board size | 45mm45mm3mm |
| Pin pitch | 1.0mm |
| Pin pad size | 1.3mm*0.6mm |
| Pin count | 172PIN |
| PCB layers | 8th floor |
| Warpage | No more than 0.5% |
