LCD101HDE Display Module

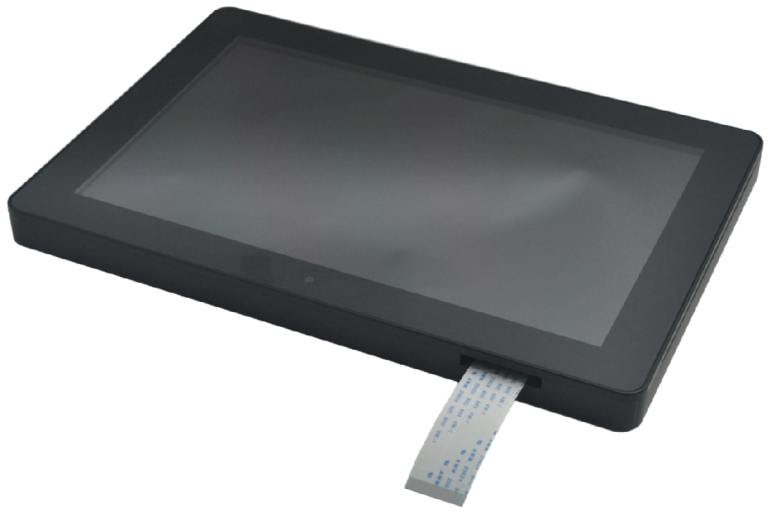

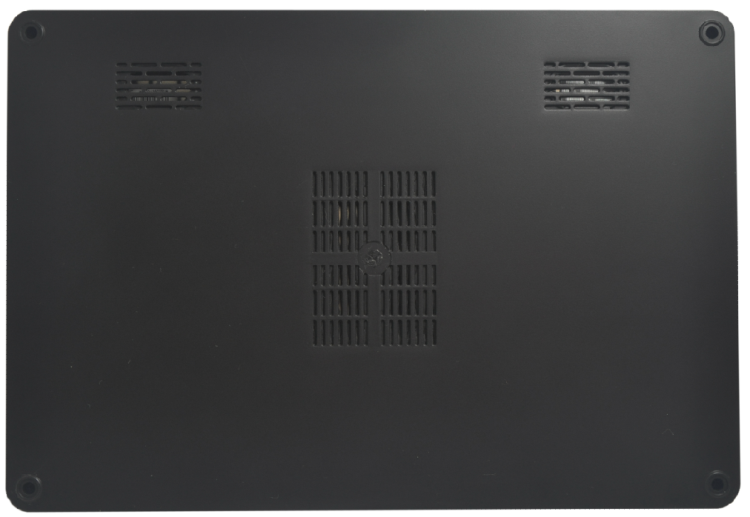

1. Product Appearance
2. Product Overview
The LCD101HDE display module is designed for the x3399 development platform, featuring a resolution of 2560x1600 — the popular 2K HD display standard. The module comes with a pre-molded plastic enclosure and integrates a 2K LCD panel, LCD controller board, and touch panel. Users only need to connect a single 30-pin FPC cable from the module to the EDP interface on the x3399 development board to start using it.
3. Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 260mm x 177.8mm x 17.5mm |
| LCD Panel Model | LTL101DL03-T01 |
| Touch IC Model | GT9271 |
| Resolution | 2560 x 1600 |
4. J5 Pin Definition
| Pin No. | Pin Name |
|---|---|
| 1 | GND |
| 2 | EDP_TX0N |
| 3 | EDP_TX0P |
| 4 | GND |
| 5 | EDP_TX1N |
| 6 | EDP_TX1P |
| 7 | GND |
| 8 | EDP_AUXN |
| 9 | EDP_AUXP |
| 10 | GND |
| 11 | EDP_TX2N |
| 12 | EDP_TX2P |
| 13 | GND |
| 14 | EDP_TX3N |
| 15 | EDP_TX3P |
| 16 | GND |
| 17 | LCD PWM Signal Input |
| 18 | GND |
| 19 | 3.3V Input |
| 20 | NC |
| 21 | NC |
| 22 | LCD Enable Input |
| 23 | Touch Panel I2C_SCL |
| 24 | Touch Panel I2C_SDA |
| 25 | Touch Panel Interrupt Output |
| 26 | Touch Panel Reset Input |
| 27 | GND |
| 28 | 5V Power Input |
| 29 | 5V Power Input |
| 30 | 5V Power Input |
